SC LC G652D G657A1 G657A2 2 Core FTTH Patch Cord

Ask Lasest Price
Brand Name :	Weiruo Cable
Model Number :	Indoor Outdoor 2 core ftth optical node drop cable flat fiber optic cable FTTH
Certification :	ISO9001
Price :	USD100-USD1030/Km
Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	1000 Km per Day
Delivery Time :	5-20 days

Add to Cart

Product Details
Company Profile

SC LC G652D G657A1 G657A2 2 Core FTTH Patch Cord

FTTH DROP CABLE PATCH CORD/JUMP CABLE

Introduction:

The optical fiber units is positioned in the center.Two stell wired or FRP are placed at the two sides.A steel wired as the additional strength member is also applied.Then the cable has a black color and white LSZH sheath.

Features:

1. High bandwidth and excellent communication transmission property;

2. Two parallel FRP strength members make sure good performance of crush resistance to protect the fiber.

3. Simple structure,light weight and high peformance;

3. Low smoke zero halogen and flame retardant sheath.

Application:

This kind of optical cable widely used in outdoor,it has self-supporting structure.So it will be very stability.

Main Technical Parameters:

Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0±0.2)×(5.0±0.2)	20	60/120	300/1000	15/30
2	(2.0±0.2)×(5.0±0.2)	20	60/120	300/1000	15/30
1	(2.0±0.2)×(5.2±0.2)	21	60/120	300/1000	15/30
4	(2.0±0.2)×(5.2±0.2)	22	60/120	300/1000	15/30

FAQ
Q1: Where is your factory located? How can I visit there?
A1: Our factory is located in Wuhan City, Hubei Province, China.
All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 15 years,and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes,sample below 30m can be provided freely,but you need pay freight cost.
Q4: How is quality for your fiber optic cable?
A4: Firstly,we use top quality raw material best fiber and friendly sheath material etc),Then surveyor will do the test,such as raw material quality test,fiber optic attenuation test and high or low temperature test etc.
Q5: How to do if don't need your company brand name?
A5: We have own factory,OEM is available;If need other brand name,it is okay.please give us letter of authorization.

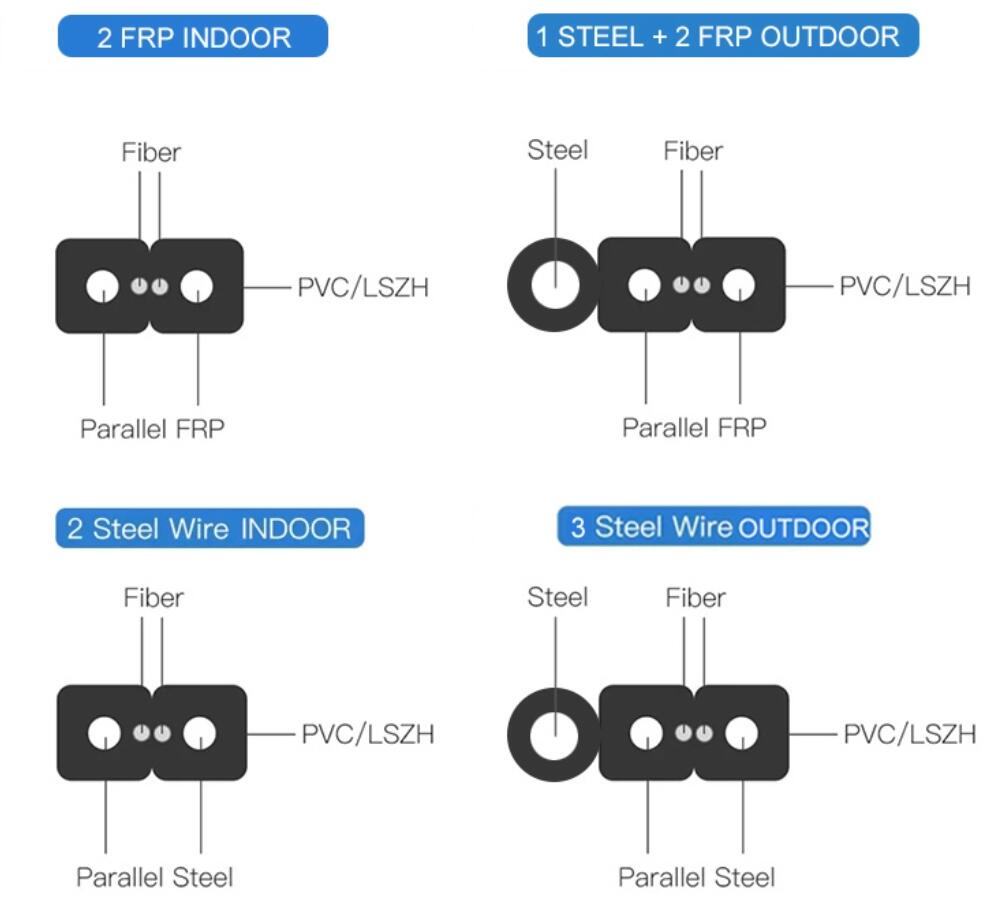

Drawings of Self-supporting Outdoor Steel Messenger Wire FRP G657 FTTH Drop Fibra Optica 2 4 1 core fiber optic cable
