2 Core Drop Wire Outdoor Overhead Telephone Copper Cable

Ask Lasest Price
Brand Name :	WRC-Outdoor telephone cable 2 core drop wire 100% copper overhead telephone cable
Model Number :	Outdoor telephone cable 2 core drop wire 100% copper overhead telephone cable
Certification :	ISO9001
Price :	USD0.072-USD0.20 per meter
Payment Terms :	Western Union, MoneyGram, L/C, T/T
Delivery Time :	100000000m per month

Add to Cart

Product Details
Company Profile

2 Core Drop Wire Outdoor Overhead Telephone Copper Cable

Outdoor telephone cable 2 core drop wire 100% copper overhead telephone cable

Description:
Suitable for installation of industrial and domestic utilisation on telecoomunications and information processing systems in French, in dry and moist operating areas of buildings. Its production is according to NFC C 93-529 for SYT1 series and NFC 93-526/527/528 for PTT series.

Features

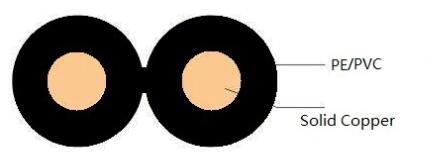

1. Conductor: 0. 5mm, 0. 6mm, 0. 8mm or 0. 9mm bare/ tinned copper wire
2. PE/PVC insulation
3. PVC/LSOH jacket
4. Shielded or unshielded
5. From 1 pair to 224 pairs
6. Coils or wooden drums packing
Specification:
• Conductor: 0.25sqmm to 4.0sqmm, bare copper ,tinned copper or CCA material
• Jacket: PVC
• Color: transparent, red/black, white and any color
• Nominal Voltage:220V
• Temperature Range: -10°C to + 80°C

Item	5m RJ11 CCS telephone cable
Conductor Material	CU,CCA,CCS
Conductor Diameter	0.40mm / 0.45mm / 0.50mm or as request
Pair Insulation	PE or PVC
Number of Twisted Pair	2 core cable
Shielding	UTP: Unshield
	STP/FTP : Mylar+AL Foil+Drain
	Armoured
Jelly Filled	As your request
Rip Cord	Yes
Outer Jacket	PVC / PE / LSZH
Jacket Color	White,Black, Gray or as request
Installation Temperature	0°C to +60°C
Operating temperature	-20°C to +75°C
Certificate	CE,ROHS,SGS
Application	Telecom wiring system

Electrical Characteristic

Frequency (MHz)	IL-Max (dB/100m)	NEXT Min(dB/100m)	PSNEXT Min(dB/100m)	ELFEXT Min(dB/100m)	RL-Min(dB)
1	2.6	41	41	39	12
4	5.6	32	32	27	12
10	9.7	26	26	19	12
16	13.1	23	23	15	10

Packing

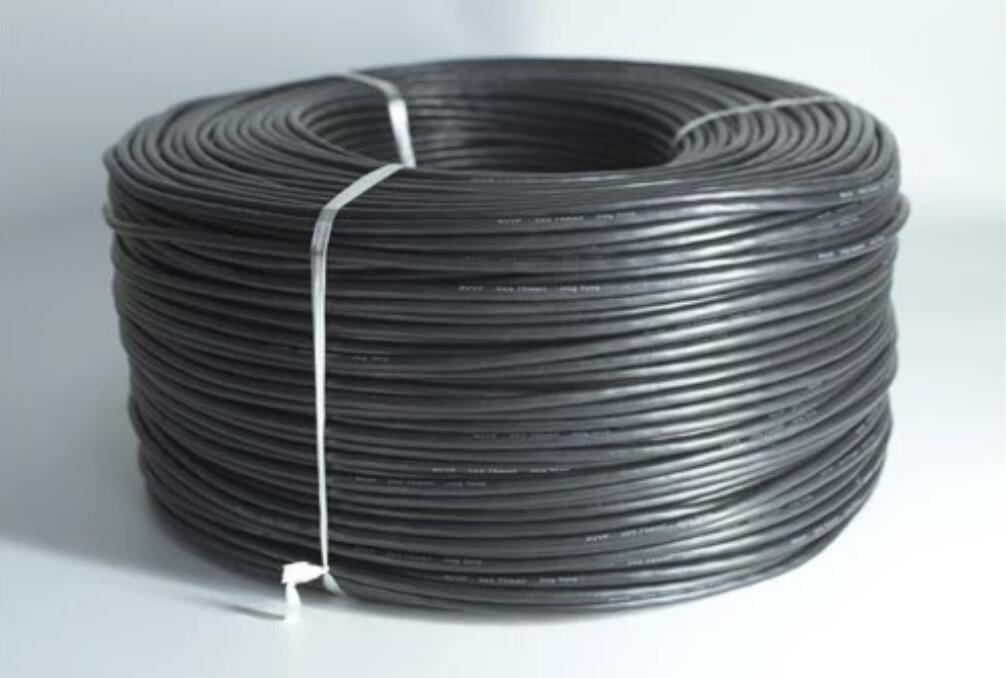

Packing detail	100m/roll, 200m/roll, 300m/roll,500m/roll or as request
Inner Package	Wooden reel, plastic reel, and paper reel available
Outer Package	Carton box, pull out box, pallet available.
Shipping time	After receving the deposit 7-10 days
mode of transport	Sea freight, Express(DHL,UPS,FEDEX, TNT),Train Way
