    G652D Aerial Communication Underwater ADSS Fiber Optic Cable

    Ask Lasest Price
    Brand Name : Weiroct
    Model Number : GYTA33
    Certification : ISO-9001
    Price : USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Kilometre / Month
    Delivery Time : 10~20 DAYS
    • Product Details
    • Company Profile

    G652D Aerial Communication Underwater ADSS Fiber Optic Cable

    Adss Fiber Optic Cable G652D Aerial Communication Cables


    Product Description:

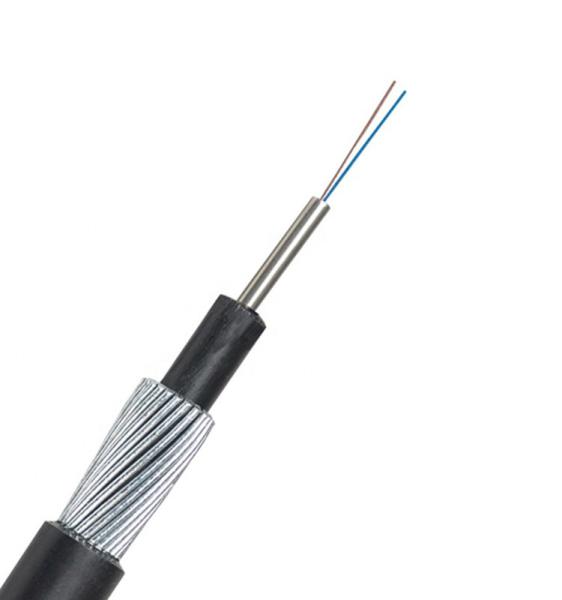

    ADSS armored fiber optic cables feature loose tube wrapped with a layer of PSP longitudinally, excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.The cable is completed with a single polyethylene (PE) sheath. It's suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for high-density fibers is expected.


    Optical Fiber Parameter:
    Fiber count
    2~30
    32~36
    38~60
    62~72
    2~36
    38~72
    CSM/Steel wire (mm)
    --/1.5
    --/2.0
    --/1.8
    2.4/1.8
    --/2.0
    2.4/1.8
    Element mumber
    5
    6
    5
    6
    6
    6
    Max. cores in tube
    6
    6
    12
    12
    6
    12
    Diameter of inner sheath
    8.3
    8.8
    9.1
    9.7
    10.5
    10.5
    Steel wire diameter and No.
    Φ1.0/28
    Φ1.0/29
    Φ1.0/30
    Φ1.0/32
    Φ1.5/24
    Φ1.5/24
    Cable diameter approx (mm)
    14.3
    14.8
    15.1
    15.7
    17.5
    17.5
    Weight approx (kg/km)
    315
    328
    .340
    360
    520
    520
    Tensile strength (N)
    Long term
    4000
    10000
    Short term
    10000
    2000
    Crush Resistence(N/100mm)
    Long term
    3000
    Short term
    5000
    Bending Radius (mm)
    Dynamic
    ≥30 ×Dia. Of cable
    Static
    ≥15×Dia. Of cable
    Operating Temperature (°C)
    -40°C ~+ 70°C
    Application
    Directly burial and Under water
