Flat Duplex Fiber Optic Cable

    Buy cheap Flat Duplex Fiber Optic Cable from wholesalers

    Buy cheap Flat Duplex Fiber Optic Cable from wholesalers
    • Buy cheap Flat Duplex Fiber Optic Cable from wholesalers

    Flat Duplex Fiber Optic Cable

    Ask Lasest Price
    Brand Name : Weiroct
    Model Number : GJFJBV
    Certification : ISO-9001
    Price : USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 Kilometre / Month
    Delivery Time : 5~20 DAYS
    • Product Details
    • Company Profile

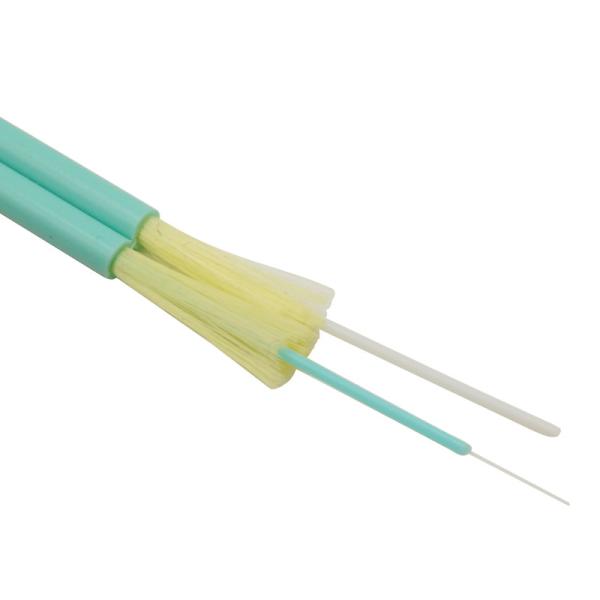

    Flat Duplex Fiber Optic Cable

    Flat Duplex Fiber Optic Cable For Distribution GJFJBV Multi Mode Indoor Optic Fiber Cable


    Product Description:


    GJFJV multi-purpose distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium,the tight buffer fiber wrapped with a layer of aramid yarn as strength member units and then is completed with a PVC or LSZH (Low smoke,Zero halogen,Flame-retardant)

    The tight buffer fibre is manufactured by sheathing the fibre with an appropriate buffer material. The diameter of Φ600μm or Φ900μm could be produced. The selection of top-quality fibre, specific production equipmentand accurately designed tools ensure a good performance of the product. Good mechanical and environmental characteristics.

    Feature:

    Flame retardant characteristics meet the requirements of relevant standards.

    The mechanical characteristics meet the requirementsof relevant stands.
    Soft, flexible easy to splice and with big capacity data transmission.
    Technical data:
    No. of fiber
    2
    Fiber Model
    OM3
    Strength Member
    Material
    Aramid yarn
    Tight buffer
    Material
    PVC
    Diameter(±0.06)mm
    0.9
    Thickness(±0.03)mm
    0.32
    Outer Sheath
    Material
    LSZH
    Color
    Aqua
    Thickness(±0.05)mm
    0.30
    0.35
    Cable Size(±0.1)mm
    2.0*4.0
    3.0*6.0
    Cable Weight(±2)kg/km
    8
    12
    Min. bending radius
    Without Tension
    10.0×Cable-φ
    Under Maximum Tension
    20.0×Cable-φ
    Temperature range
    (℃)
    Installation
    -20~+60
    Transport&Storage
    -40~+70
    Operation
    -40~+70
