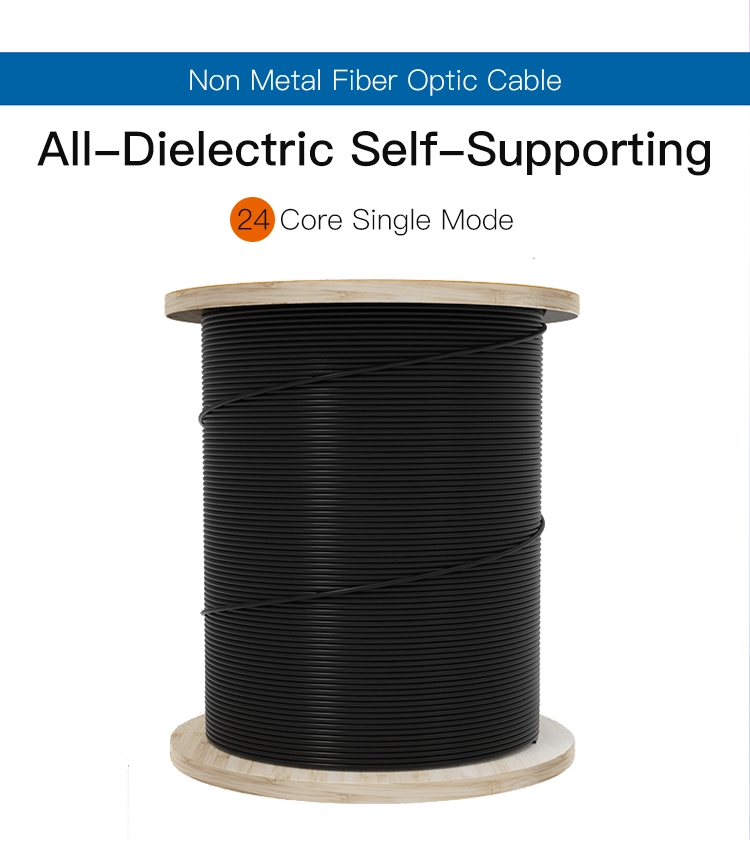

    ADSS G652D 200m 300m 500m Communication Aramid Yarn Fiber Optic Cable

    Ask Lasest Price
    Brand Name : Weiroct
    Model Number : ADSS-96
    Certification : ISO-9001
    Price : USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 Kilometre / Month
    Delivery Time : 10~20 DAYS
    • Product Details
    • Company Profile

    ADSS G652D 200m 300m 500m Communication Aramid Yarn Fiber Optic Cable

    Aramid Yarn Fiber Optic Cable Span 200m 300m 500m ODM OEM Adss Fiber Optic Cable G.652D Aerial Communication Cable


    Product Description:


    ADSS armored fiber optic cables feature loose tube wrapped with a layer of PSP longitudinally, excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.The cable is completed with a single polyethylene (PE) sheath. It's suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for high-density fibers is expected.


    Characteristics:

    MODEL: OFC-ADSS
    Fiber: SM G652D
    Strengthen: Aramid Yarn
    Jacket Diameter: 9.5mm
    Jacket Material: LLDPE
    Cable Length: 3Km/Drum
    Simple Specification:
    Insertion Loss: ≤0.30dB
    Return Loss: ≥50dB
    Durability: ≤0.20dB
    Test Wavelength: 1310/1550nm
    Operation Temperature: -20℃ to +60℃
    Cable Type
    Fibre Opitc Cable
    Fiber Count
    4~288 cores
    Construction
    Stranded Loose Tube
    Fiber Type
    Singlemode G.652D
    Inner/Outer Jacket Material
    PE
    Jacket Color
    Black
    Cable Diameter
    14.0mm
    Weight
    155kg/km
    Strength Member
    FRP
    Span
    100m
    Rated Tensile Strength
    34KN
    Modulus of Elasticity
    12.5KN/mm2
