Brand Name : | Weiroct |
Model Number : | Patch Cord |
Certification : | ISO-9001 |
Price : | USD |
Payment Terms : | T/T, L/C, Western Union, MoneyGram |
Supply Ability : | 2000 Kilometre / Month |
Delivery Time : | 5~20 DAYS |

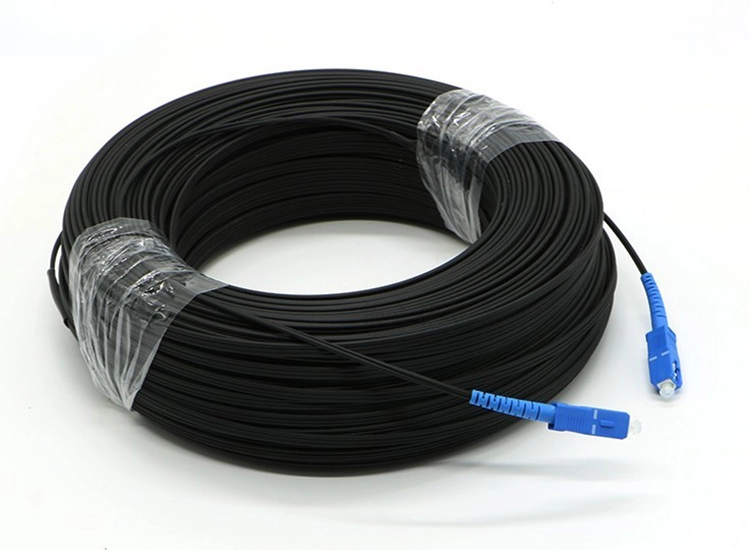

FTTH 1Core 2Core 4Core Patch Cord Cable FTTX Drop Cable Fiber Optical Cables
Feature:
1. Special low-bend-sensitivity fiber provides high bandwidth and
excellent communication transmission property.
2. Two parallel FRP strength members ensure good performance of
crush resistance to protect the fiber.
3. Single steel wire as the additional strength member ensure good
performance of tensile strength.
4. Simple structure, light weight and high practicability.
5. Novel flute design, easily strip and splice, simplify the
installation and maintenance.
6. Low smoke, zero halogen and flame retardant sheath.
7. Storage / Operating Temperature: -20°C~+60°C.
Applications:
1. Used in access network or as access cable from outdoor to indoor in customer premises network;
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor.
Optical Characteristics:
FTTH Fiber Drop Cable Patchcord | |
ITEM | Fiber optic Drop cable patch cord |
CONNECTOR | SC-SC |
FIBER TYPE | SIMPLEX SINGLE MODE |
FERRULE | APC/UPC |
JACKET | WHITE LSZH |
OD | 2.0*3.0MM |
INSERT LOSS | <0.2dB |
RETURN LOSS | >50dB |
POLARITY | A(Tx) to B(Rx) |
![]() |
