Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable

    Buy cheap Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable from wholesalers

    Buy cheap Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable from wholesalers
    • Buy cheap Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable from wholesalers
    • Buy cheap Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable from wholesalers
    • Buy cheap Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable from wholesalers
    • Buy cheap Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable from wholesalers

    Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable

    Ask Lasest Price
    Brand Name : WRC Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable
    Model Number : Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable
    Certification : ISO9001,SGS,ROHS
    Price : USD80-USD280/Km
    Payment Terms : Western Union, MoneyGram, L/C, T/T
    Supply Ability : 500Km per day
    Delivery Time : 5-21 days
    • Product Details
    • Company Profile

    Crush Resistance Flexibility 2-48 Core GYXTW Outdoor Fiber Optic Cable

    Description: Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable

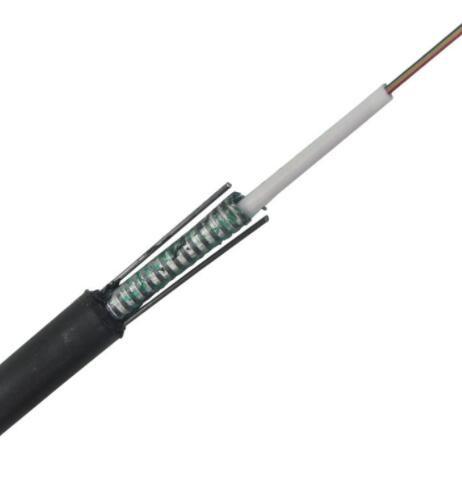

    GYXTW central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network and access network, and is especially suitable for the situation where high-density fibers is expected. The tube is wrapped with a layer of PSP longitudinally,excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape,to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath.


    Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable Characteristics: Two parallel steel wires ensure tensile strength PSP enhances the cable crush resistance, impact resistance and moisture-proof. Accurate fiber excess length ensures good mechanical and temperature performance. Specially designed compact structure is good at preventing loose tubes from shrinking. High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber. Small diameter, light weight and it is easy to be installed. Crush resistance and flexibility. GYXTW Fiber Optic Cable Application
    Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable

    Fiber

    Count

    Nominal

    Diameter

    (mm)

    Nominal

    Weight

    (kg/km)

    Allowable Tensile Load

    (N)

    Allowable Crush Resistance
    (N/100mm)
    Short TermLong TermShort TermLong Term
    2~128.69515006001000300
    14~249.011015006001000300

    Parameters of Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable

    Fiber Type
    G.652
    G655
    50/125μm
    62.5/125μm
    Attenuation(+20℃)
    @850nm
    ≤3.0 db/km
    ≤3.3 db/km
    @1300nm
    ≤1.0 db/km
    ≤1.0 db/km
    @1310nm
    ≤3.6 db/km
    ≤0.40 db/km
    @1550nm
    ≤0.22 db/km
    ≤0.23 db/km
    Bandwidth
    @850nm
    ≥500MHz.km
    ≥200MHz.km
    @1300nm
    ≥500MHz.km
    ≥500MHz.km
    Numerical Aperture
    0.200±0.015NA
    0.275±0.015NA
    Cable Cut-off Wavelength
    ≤1260 nm
    ≤1450 nm

    Payment

    T/T , L/C are all offered.


    Shipping & Delivery

    We will send the products within 10 days.

    We ship small batched by air, or large orders by container.


    Return and Warranty:

    All products have been tested before delivered

    All products have 2 years warranty. If there is no man-made problem ,we will replace or repair for you freely.

    We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.


    Drawings Custom Crush Resistance And Flexibility 2-48 Core GYXTW Fiber Optic Cable
