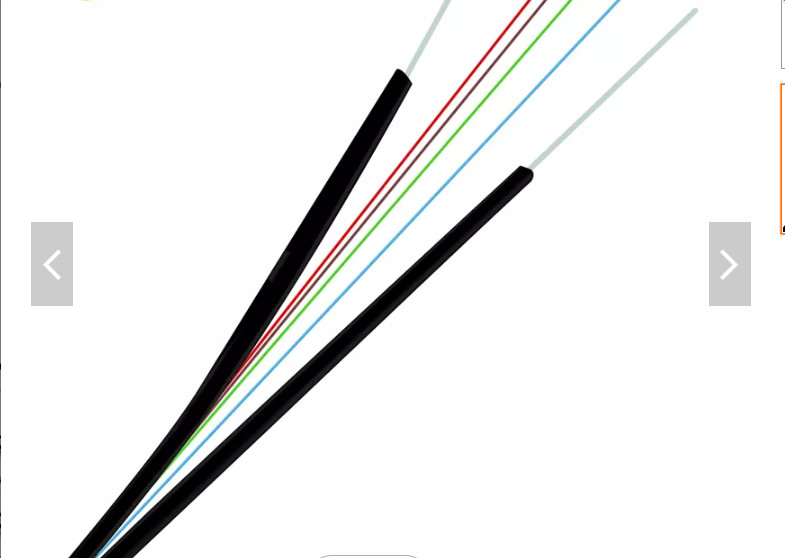

GJXH FTTH Drop Cable LSZH Jacket 1 core 2 core G657A FTTH Drop
Fiber Cable
 |
| FiberType: G.652, G.655 or G.657 single-mode fiber, A1a orA1b, OM3
or OM4 multi-mode fiber, or other types of fiber.Jacket Material:
Environmental flame retardant polyvinylchloride(PVC), environmental
low smoke zero halogen flame retardant
polyolefin(LSZH),environmental halogen flame retardant
polyolefin(ZRPO), orother contracted material.Jacket Color:
(Including color of fiber) meets the requirements of relevant
standards, or other contracted color. |
Features
Good mechanical and environmental characteristics.
Rame retardant characteristics meet the requirements of relevant
standards.
The mechanical characteristics meet the requirements of relevant
standards.
Soft, flexible, easy to lay and splice, and with big capacity data
transmission.
Meet various requirements of market and clients.
Applications
Used as access building cable.
Used in indoor cabling, especially used for FTTH
Optical Characteristics
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | | | | | 16 |
| G657A1 | 0.36/0.22 | | | | | 10 |
| G657A2 | 0.36/0.22 | | | | | 7.5 |
| 50/125 | | 3.0/1.0 | ≥500/500 | | | 30 |
| 62.2/125 | | 3.0/1.0 | ≥200/500 | | | 30 |
| OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 |
| OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 |
| B1-OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 |
| B1-OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5
|
Structure and Technical Specification
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) |
Tensile Strength
(N/100mm) | Crush Resistance (N/100mm) |
| Short Term | Long Term | Short Term | Long Term |
| 1-4 | 3.0*2.0 | 9.0 | 80/200 | 40/100 | 1000/2200 | 500/1000 |
Note :1.This datasheet can only be a referance,but not a supplement
to the contract,Please contact our sales people for
more information.
2.The cable core use the colored coating fiber of 250μm.
3.The tensile and crush of the cable are accordance with the values
in the table when the strength member of FRP and Steel are used flame retardant fiber optic cable
FAQ
Q1: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or
faster(weekends not included), however, a few of days would be
taken for special ones.
Q2:How about the cable's quality ?
A: Our factory has dug in this industry for many years and sold to
many countries in the world. We are fully compliant with ISO9001:
2008 quality management system, we guarantee that our products are
IEC60794 and Telcordia-GR-326-Core standard compliant. We have a
series of professional equipment and manufacturing instruments to
make sure reliable quality of our products.
Q3: How do l assure that you are a reliable supplier?
A: We are the Assessed Supplier of Alibaba.com. Alibaba as the
third party to verify our factory and office to confirm we are a
real and reliable supplier. If you are willing to verify that
through the phone or video, you are welcome at any time.
Q4: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ
Depends on different items, each item has its own minimum quantity.
Your satisfaction is our maximum motivation.
Drawings of 1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1
g657a2 g652d ftth indoor outdoor fiber optic drop cable
