Self-supporting bow-type 1 2 4 6 8 12 core ftth fiber optic cable
duct drop cables GJXFH/GJXH ftth cable
Model: GJXH / GJXFH / GJYXCH / Ftth Cable
1. GJXH- The optical fiber unit is positioned in the central. Two
parallel steel wire are placed at the two sides. Then, the cable is
completed with a black or color LSZH or PVC sheath.
2. GJXFH- The optical fiber unit is positioned in the central. Two
parallel Fiber Reinforced Plastics (FRP) are placed at the two
sides. Then, the cable is completed with a black or color LSZH or
PVC sheath.
3. GJYXCH-The optical fiber unit is positioned in the centre. Two
parallel steel wires are placed at the two sides. A steel wire as
the additional strength member is also applied. Then the cable is
completed with a black LSZH sheath.

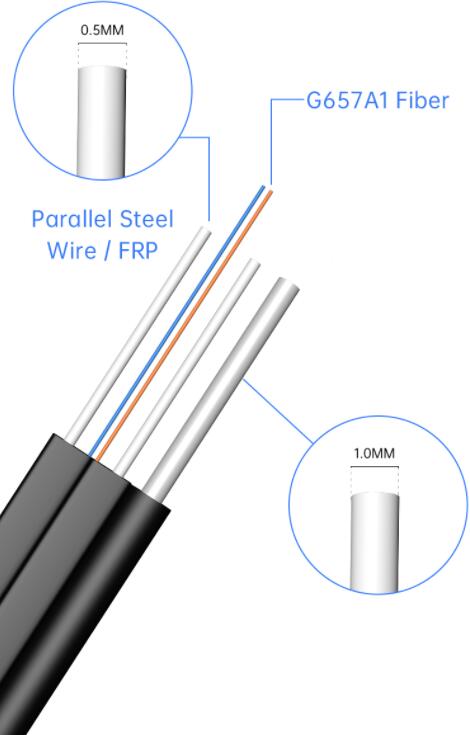

4. Ftth Cable- The optical fiber unit is positioned in the centre.
Two parallel Fiber Reinforced member FRP are placed at the two
sides. A steel wire as the additional strength member is also
applied. Then the cable is completed with a black or color LSZH
sheath.
Application:
1. Access network
2. FTTH cable (Fiber to the home)
3. Used in indoor cabling
4. Used for parch cord or pigtail
Features:
1. Special low-bend-sensitivity fiber provides high bandwidth and
excellent communication transmission property.
2. Two parallel FRP strength members ensure good performance of
crush resistance to protect the fiber.
3. Simple structure, light weight and high practicability.
4. LSZH Jacket: Low smoke, zero alogen and flame retardant sheath.
Fiber Parameters
| No. | Items | Unit | Specification |
| G.657A1 |
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 |
| 2 | Cladding Diameter | μm | 124.8±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 |
| 10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | ≤0.75 |
| 1turn×10mm radius@1625nm | dB | ≤1.5 |
Cable Parameters
| Items | Specifications |
| Fiber Count | 2 |
| Colored Coating Fiber | Dimension | 250±15μm |
| Color | Blue, Orange |
| Strength Member | Dimension | 0.5mm |
| Material | FRP |
| Self-Supporting Member | Dimension | 1.0mm |
| Material | Steel Wire |
| Jacket | Dimension | 5.2±0.2mm×2.0±0.1mm |
| Material | LSZH |
| Color | Black |
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tension (Long Term) | N | 300 |
| Tension (Short Term) | N | 600 |
| Crush (Long Term) | N/10cm | 1000 |
| Crush (Short Term) | N/10cm | 2200 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -40~+70 |
| Storage Temperature | ℃ | -40~+70 |
More products
Packaging & Shipping
1) Packing Lengths: 1000m/roll, 2000m/roll. Other lengths available
according to client's Request;
2) Inner packing: Wooden reel, plastic reel.
3) Outer packing: Carton box, pull box, pallet.
4) Other packing available according to client's Reques.
1. Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.
2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place
sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
