GJYXCH 1 2 4 Core G657A1 Steel Wire Or FRP Black Fiber Optic Drop Cable

Ask Lasest Price
Brand Name :	WRC
Model Number :	GJYXCH
Certification :	ISO9001
Price :	USD100-USD1030/Km
Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	1000 Km per Day
Delivery Time :	5-20 days

Add to Cart

Product Details
Company Profile

GJYXCH 1 2 4 Core G657A1 Steel Wire Or FRP Black Fiber Optic Drop Cable

GJYXCH 1 2 4 Core G657A1 Steel Wire Or FRP Black Fiber Optic Drop Cable

Description:

GJYXCH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. Finally this cable is completed with black or white LSZH sheath.

Features :

1, High tensile of the diameter1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.
2, Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, Single mode
6, (2.0±0.2)x(5.0±0.2)mm
7, Compliant with Telcordia GR-326-CORE specification

Characteristic:
1. Special low-bend -sensitivity fiber provides high bandwidth and excellent communication transmission property
2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
3. Single steel wire or massagers as the additional strength member ensures good performance of tensile strength .
4. Simple structure , light weight and high practicability
5. special flute desigh , easily strip and splice , simplify the installation and maintenance
6. Low smoke , zero halogen and flame retardant sheath

Technical data :

Item	Technology parameter
Cable type	GJYXCH-1B6	GJYXCH-2B6	GJYXCH-4B6
Cable specification	5.2×2.0
Fiber type	9/125 (G.657A2)
Fiber counts	1	2	4
Fiber color	Red	Blue, orange	Blue, orange, green, brown
Sheath color	Black
Sheath material	LSZH
Cable dimension mm	5.2(±0.2)*2.0(±0.2)
Cable weight Kg/km	Approx. 19.5
Min. bending radius mm	120
Min. bending radius mm (Excluding messenger wire)	10 (Static) 25 (Dynamic)
Attenuation dB/km	≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
Short term tensile N	600
Long term tensile N	300
Short term crush N/100mm	2200
Long term crush N/100mm	1100
Operation temperature ℃	-20~+60

Item	Technology parameter
Cable type	GJYXFCH-1B6	GJYXFCH-2B6	GJYXFCH-4B6
Cable specification	5.2×2.0
Fiber type	9/125 (G.657A2)
Fiber counts	1	2	4
Fiber color	Red	Blue, orange	Blue, orange, green, brown
Sheath color	Black
Sheath material	LSZH
Cable dimension mm	5.2(±0.2)*2.0(±0.2)
Cable weight Kg/km	Approx. 13.5
Min. bending radius mm	120
Min. bending radius mm (Excluding messenger wire)	10 (Static) 25 (Dynamic)
Attenuation dB/km	≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
Short term tensile N	230
Long term tensile N	110
Short term crush N/100mm	1000
Long term crush N/100mm	500
Operation temperature ℃	-20~+60

Technical Parameter :

Cable Type	Cable Diamter (mm)	Weight (kg/km)	Tensile strength(N)		Crush Resistance(N/100mm)		Minimum bending radius (mm)
			Short-term	Long-term	Short-term	Long-term	Static	Dynamic
GJXFH-1	2.0*5.0	21	60	30	1000	300	15	30
GJXFH-2	2.0*5.0	21	60	30	1000	300	15	30
GJXFH-4	2.0*5.6	21.5	60	30	1000	300	15	30
GJXH-1	2.0*5.0	21	60	30	1000	300	15	30
GJXH-2	2.0*5.0	21	60	30	1000	300	15	30

G.652D Single Mode Optical Fiber (B1.3)
Item		Standard	Unit
Attenuation	1310nm	≤0.35	dB/km
	1383nm	≤0.33	dB/km
	1550nm	≤0.21	dB/km
	1625nm	≤0.24	dB/km
Dispersion	1288nm～1339nm	\|D\|≤3.4	ps/(nm·km)
	1271nm～1360nm	\|D\|≤5.3	ps/(nm·km)
	1550nm	≤17.8	ps/(nm·km)
Zero-dispersion wavelength		1300～1322	(nm)
Zero-dispersion slope		≤0.091	ps/(nm2•km)
PMD	PMD single fiber	≤0.15	ps/√km
PMD	PMD Q links	≤0.08	ps/√km
MDF	1310nm	9.2±0.4	um
Cladding diameter		125±1.0	μm
Cladding non-circularity		≤0.8	%
Core-cladding concentricity error		≤0.6	μm
Coating diameter		245±10	μm
Cladding/coating concentricity error		≤10.0	μm
Cut-off wavelength		1.18～1.33	μm
Macrobend attenuation (ф 50mm, 100 cycles)	1550nm	≤0.05	dB
Macrobend attenuation (ф 50mm, 100 cycles)	1625nm	≤0.05	dB
Bending radius		≥5	m
Dynamic fatigue parameters		≥20	nd
Additional Attenuation @1310nm & @1550nm	Temperature cycling test: (-60℃～85℃, 3 cycles)	≤0.03	dB/km
	Water soak test: (23℃ for 30 days)	≤0.03	dB/km
	Damp heat test: (85℃, 85%RH for 30 days)	≤0.03	dB/km
	Thermal aging test (85℃ for 30 days)	≤0.03	dB/km
	Warm water soak test: (60℃ for 15 days)	≤0.03	dB/km

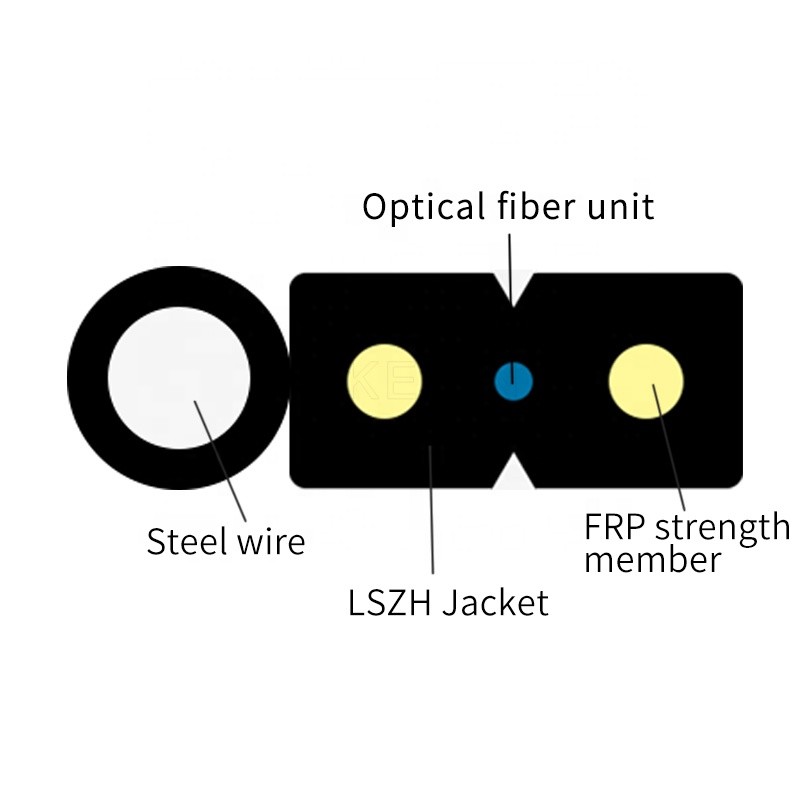

Drawings of GJYXCH:
