Indoor Outdoor FTTH Fiber Optic Cable 1650nm Soft Easy To Deploy

Ask Lasest Price
Brand Name :	WRC-1 core 2 cores 4core GJYXCH G657A1 G657A2 G652D FTTH indoor outdoor fiber optic cable
Model Number :	GJXFH
Certification :	ISO9001
Price :	USD100-USD1030/Km
Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	1000 Km per Day
Delivery Time :	5-20 days

Add to Cart

Product Details
Company Profile

Indoor Outdoor FTTH Fiber Optic Cable 1650nm Soft Easy To Deploy

1 core 2 cores 4core GJYXCH G657A1 G657A2 G652D FTTH indoor outdoor fiber optic cable

Description:

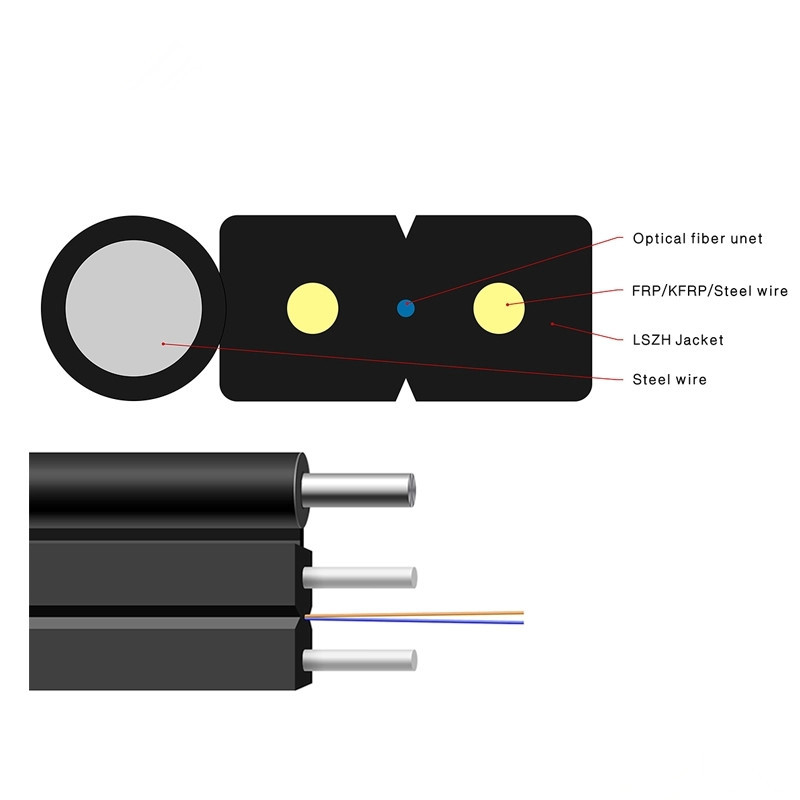

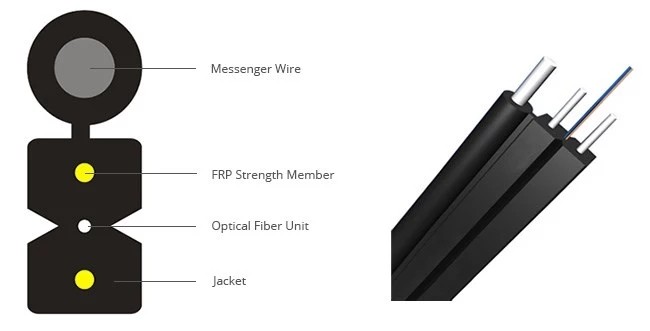

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. Finally this cable is completed with black or white LSZH sheath.

Features:

1.Soft and bendable, easy to deploy and maintenance.

2.Smaller diameter, Light weight, and high practicability.

3.Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.

4.Environmental protection- Low smoke, zero halogen and flame retardant sheath.

Applications

1. Used in access network or as access cable from outdoor to indoor in customer premises network;

2. Used as access building cable in premises distribution system, especially used in indoor or outdoor

Technical data of GJYXCH-1B6 G657A2 1 Core Outdoor FTTH Optical Fiber Drop Cable with Messenger

Item	Technology parameter
Cable type	GJYXCH-1B6	GJYXCH-2B6	GJYXCH-4B6
Cable specification	5.2×2.0
Fiber type	9/125 (G.657A2)
Fiber counts	1	2	4
Fiber color	Red	Blue, orange	Blue, orange, green, brown
Sheath color	Black
Sheath material	LSZH
Cable dimension mm	5.2(±0.2)*2.0(±0.2)
Cable weight Kg/km	Approx. 19.5
Min. bending radius mm	120
Min. bending radius mm (Excluding messenger wire)	10 (Static) 25 (Dynamic)
Attenuation dB/km	≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
Short term tensile N	600
Long term tensile N	300
Short term crush N/100mm	2200
Long term crush N/100mm	1100
Operation temperature ℃	-20~+60

Item	Technology parameter
Cable type	GJYXFCH-1B6	GJYXFCH-2B6	GJYXFCH-4B6
Cable specification	5.2×2.0
Fiber type	9/125 (G.657A2)
Fiber counts	1	2	4
Fiber color	Red	Blue, orange	Blue, orange, green, brown
Sheath color	Black
Sheath material	LSZH
Cable dimension mm	5.2(±0.2)*2.0(±0.2)
Cable weight Kg/km	Approx. 13.5
Min. bending radius mm	120
Min. bending radius mm (Excluding messenger wire)	10 (Static) 25 (Dynamic)
Attenuation dB/km	≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
Short term tensile N	230
Long term tensile N	110
Short term crush N/100mm	1000
Long term crush N/100mm	500
Operation temperature ℃	-20~+60

Technical Parameter of GJYXCH-1B6 G657A2 1 Core Outdoor FTTH Optical Fiber Drop Cable with Messenger

Cable Type	Cable Diamter (mm)	Weight (kg/km)	Tensile strength(N)		Crush Resistance(N/100mm)		Minimum bending radius (mm)
			Short-term	Long-term	Short-term	Long-term	Static	Dynamic
GJXFH-1	2.0*5.0	21	60	30	1000	300	15	30
GJXFH-2	2.0*5.0	21	60	30	1000	300	15	30
GJXFH-4	2.0*5.6	21.5	60	30	1000	300	15	30
GJXH-1	2.0*5.0	21	60	30	1000	300	15	30
GJXH-2	2.0*5.0	21	60	30	1000	300	15	30

G.652D Single Mode Optical Fiber (B1.3)
Item		Standard	Unit
Attenuation	1310nm	≤0.35	dB/km
	1383nm	≤0.33	dB/km
	1550nm	≤0.21	dB/km
	1625nm	≤0.24	dB/km
Dispersion	1288nm～1339nm	\|D\|≤3.4	ps/(nm·km)
	1271nm～1360nm	\|D\|≤5.3	ps/(nm·km)
	1550nm	≤17.8	ps/(nm·km)
Zero-dispersion wavelength		1300～1322	(nm)
Zero-dispersion slope		≤0.091	ps/(nm2•km)
PMD	PMD single fiber	≤0.15	ps/√km
PMD	PMD Q links	≤0.08	ps/√km
MDF	1310nm	9.2±0.4	um
Cladding diameter		125±1.0	μm
Cladding non-circularity		≤0.8	%
Core-cladding concentricity error		≤0.6	μm
Coating diameter		245±10	μm
Cladding/coating concentricity error		≤10.0	μm
Cut-off wavelength		1.18～1.33	μm
Macrobend attenuation (ф 50mm, 100 cycles)	1550nm	≤0.05	dB
Macrobend attenuation (ф 50mm, 100 cycles)	1625nm	≤0.05	dB
Bending radius		≥5	m
Dynamic fatigue parameters		≥20	nd
Additional Attenuation @1310nm & @1550nm	Temperature cycling test: (-60℃～85℃, 3 cycles)	≤0.03	dB/km
	Water soak test: (23℃ for 30 days)	≤0.03	dB/km
	Damp heat test: (85℃, 85%RH for 30 days)	≤0.03	dB/km
	Thermal aging test (85℃ for 30 days)	≤0.03	dB/km
	Warm water soak test: (60℃ for 15 days)	≤0.03	dB/km

Indoor Outdoor FTTH Fiber Optic Cable 1650nm Soft Easy To Deploy
