    FTTH Indoor 2 Core Fiber Drop Cable 1260nm LSZH Jacket For Network Wiring System

    Ask Lasest Price
    Brand Name : WRC-Ftth indoor 1core 2 Core Cables LSZH Jacket Network Cable Fiber Drop Cable GJXH
    Model Number : GJXH
    Certification : ISO9001
    Price : USD100-USD1030/Km
    Payment Terms : Western Union, MoneyGram, T/T, L/C
    Supply Ability : 1000 Km per Day
    Delivery Time : 5-20 days
    • Product Details
    • Company Profile

    FTTH Indoor 2 Core Fiber Drop Cable 1260nm LSZH Jacket For Network Wiring System

    FTTH indoor 1core 2 Core Cables LSZH Jacket Network Cable Fiber Drop Cable GJXH

    Description:

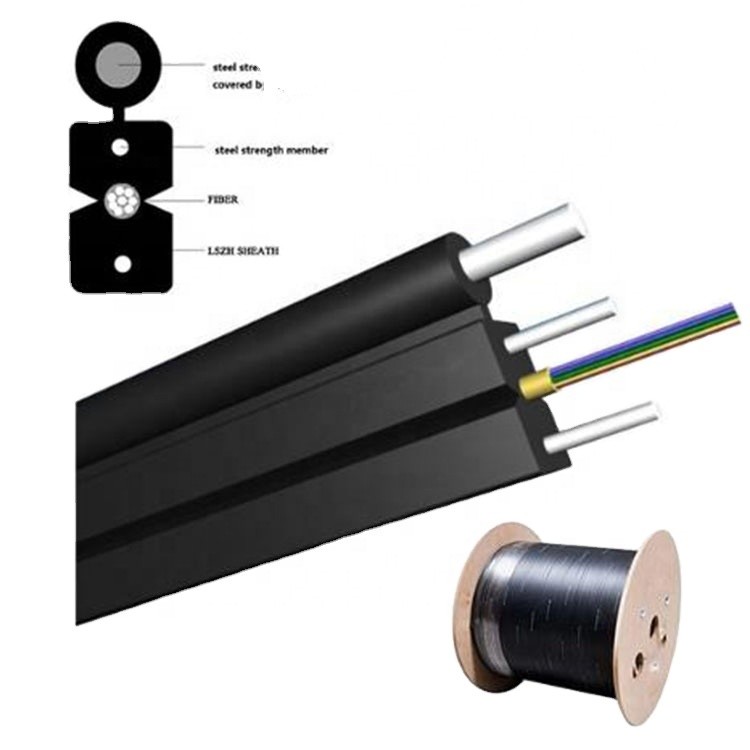

    FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. Finally this cable is completed with black or white LSZH sheath.

    Features:
    1.Two parallel steel wire strength members ensure good performance of crush resistance to protect the fiber.

    2.Novel flute design, easily strip and splice, simplify the installation and maintenance.
    3.Low smoke zero halogen and flame retardant sheath.
    4.Single mode (2.0±0.2)x(3.0±0.2)mm.
    5.Compliant with Telcordia GR-326-CORE specification.

    Applications:

    • Indoor wiring system

    • FTTH, terminal system

    • Indoor shaft,building wiring


    Technical data of 1 core 2 cores 4core 12core gjyxch gjyxfch gjxh g657a1 g657a2 g652d ftth indoor outdoor fiber optic drop cable
    Model No.Count

    Cable Size

    (mm)

    Weight

    (kg/km)

    Tension
    (N)

    Crush

    (N/100mm)

    Bending Radius Static / dynamic
    (mm)
    GJYXCH-1Xn1(2.0±0.1)×(5.0±0.1)20300/6001000/220015/30
    GJYXCH-2Xn2(2.0±0.1)×(5.0±0.1)20300/6001000/220015/30


    Optical Fibre Performance

    TypeFiber attenuation(+20℃)OFLBand Width10G Ethernet link lengthMinimum bending radius
    Condition1310/1550nm850/1300nm850/1300nm850nm850nm/
    Typical valueMAXTypical valueMAX
    UnitdB/kmdB/kmdB/kmdB/kmMHZ.kmMHZ.kmmmm
    G657A10.36/0.220.5/0.4---------------10
    G657A20.36/0.220.5/0.4---------------7.5
    OM3------3.0/1.03.5/1.5≥1500/500≥2000≤30030
    OM4------3.0/1.03.5/1.5≥3500/500≥4700≤550

    30
