APC Single Mode Simplex LSZH Fiber Optic Cable

Ask Lasest Price
Brand Name :	Weiroct
Model Number :	SM MM
Certification :	ISO-9001
Price :	USD2-12/set
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	1000pcs/day
Delivery Time :	5~20 DAYS

Add to Cart

Product Details
Company Profile

SC/APC To SC/APC Single Mode Simplex LSZH Fiber Optic Cable

SC/APC to SC/APC Singlemode Simplex LSZH fiber optic patch cord

High quality SC APC - SC APC G657A1 Fiber Optic Patch Cable Simplex 3.0mm LSZH White 2m,3m,5m,7m,9m,10m,15m,20m,25m..

Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.

The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.

The 9/125μm single mode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.

Optical Specifications

Connector	SC/APC to SC/APC	Jacket OD(mm)	2.8mm
Fiber Mode	9/125μm, BIF G657A1	Jacket Color	White;
Polish	APC	Wavelength	SM:1310/1550nm
Cable Type	Simplex	Jacket Material	LSZH
Insertion loss	≤0.3dB(IEC Grade C)	Insertion loss	≤0.12dB(IEC Grade B)
Return loss	SM APC ≥ 60dB(min)	Interchangeability &Vibration	≤0.2dB
Operating temperature	-40~75°C	Storage temperature	-45~85°C

Note:

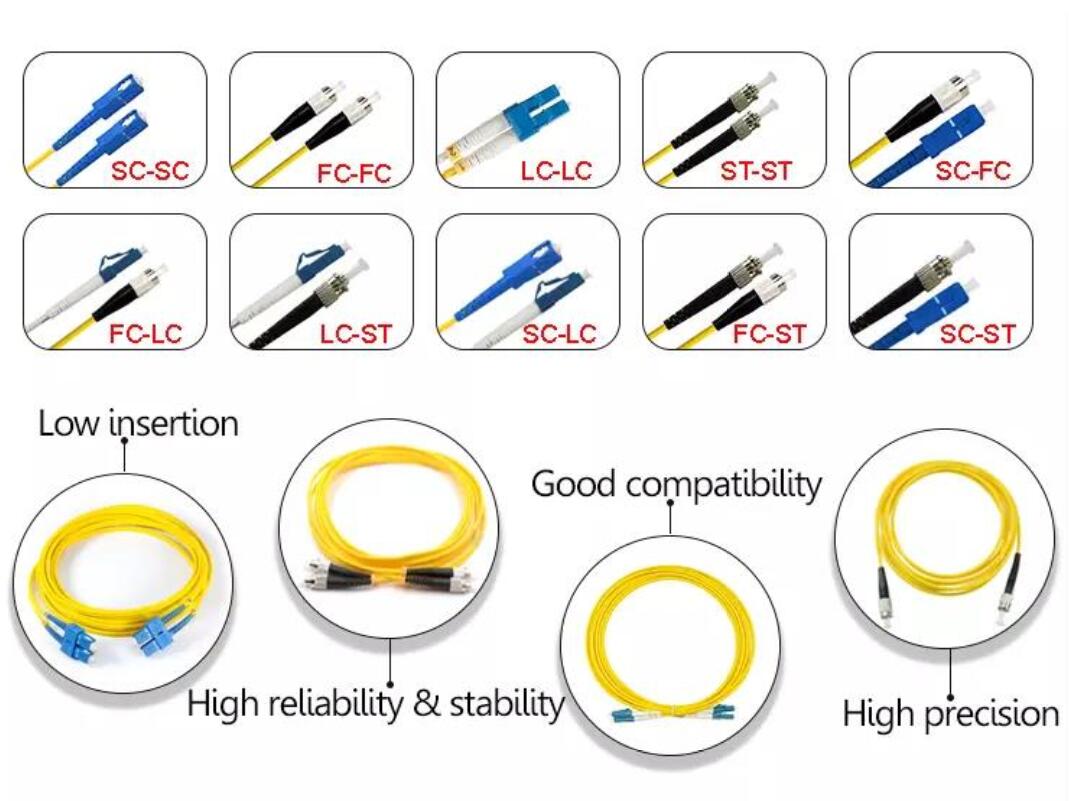

(1) The fiber optic patch cords are available in all connector styles
(2) Various color cable available upon customers' request
(3) OS1(9/125um), OM1(62.5/125um), OM2(50/125um) and OM3(50/125um) are available
(4) Any length is available upon request
(5) For jacket, PVC(Riser) is normal and LSZH & Plenum are available
(6) For cable type G655 & G657 are also available

Other type

FAQ

Q1. If can get a sample before place order ?
A: Of course . We can offer the product sample to you . the sample cost and the fierght will be by your side .
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance .
Q3. How about your delivery time?
A: Generally, it will take 3 to 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
