Fiber Optical 16 24 Core PLC Splitter Fiber Optic Distribution Box

Fiber Distribution Box Description:

This fiber optic distribution box are used in the terminal link of FTTH access system,specially suitable for pole and wall mounting application.In the optical fiber transmission network,splitter distribution box is the ideal equipment between optical node and terminal.

Fiber Distribution Box Features:
The housing material is PC+ABS

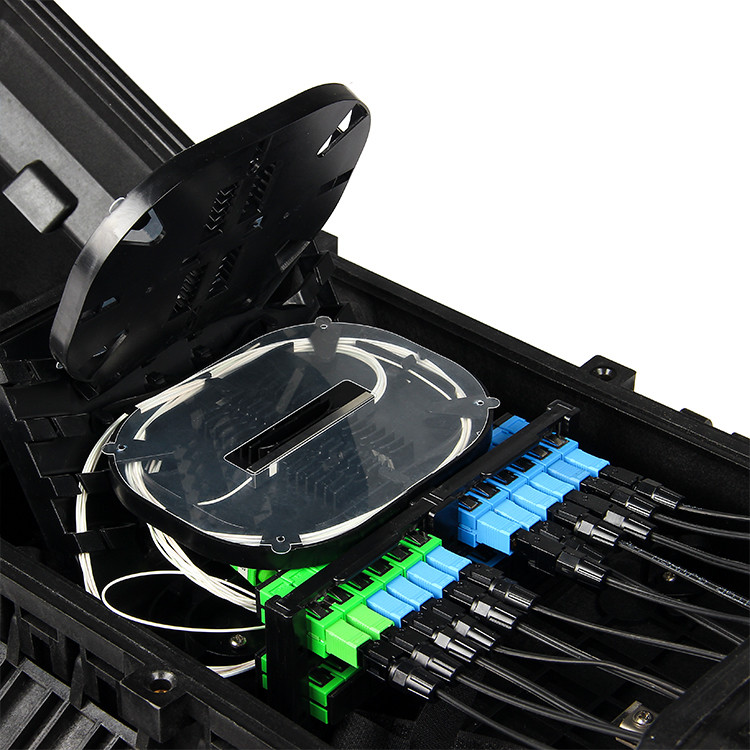

Duble layer design,pper layer is splitter,ower is for fusion.The fibers distribution clearly,asy to operate.
Capacity: 6- 12 cores,C adaptors Can installed.
Cable entry points :drop cable (2*mm),pcs for express/cascade cable(∅6 mm -∅ 12 mm)
Insulation resistance:500V
Operating temperature -40
Connector Loss:( Insertion.repeatbility,interchangeability)0.5dB
Retrun Loss:>5dB, UPC>0dB, >0dB
Fiber Distribution Box Application:
Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks

Product Advantages

- 5 ports used for Φ 8 to 18 mm cable, 1 uncut ports and 4 branch ports.

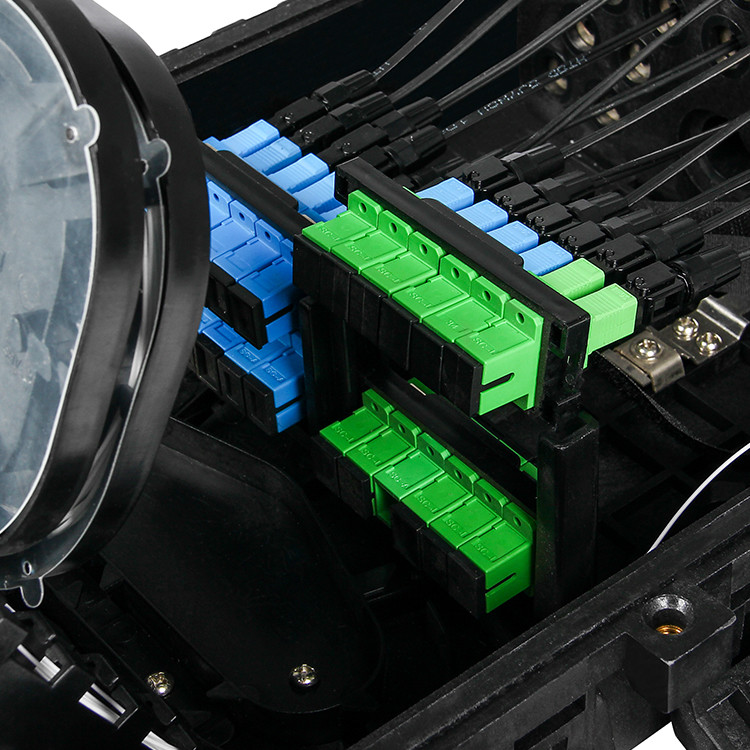

- Splitter can be installed 1:8, 1:16 or 2:16, and maximum 18 SC adapters can be assembled.

- Installation method: pole-mounting, wall-mounting, manhole.

- There are two capacities to choose, 12cores,24 cores and 48 cores.

- Protection grade: IP68

Product name	16/24 Core Splice Enclosure Box/Caja Nap Box/PLC Splitter Terminal Box
Feature	High Performance for distribution box
Material	ABS+PC
Install method	Wall/pole mounted
Size	320*160*100mm
Adapter Type	SC,FC,ST,LC
Working Tempreture	-40+80℃

Wuhan Weiruo Communication technologies Co., Ltd is a leading independent manufacturer of optical fiber cables located in Wuhan City China. Founded in 2001, we manufacture indoor & outdoor optical cables and optical accessories products for the communications industry and are manufactured using internationally recognized materials, standards and test methods.

Since the establishment of the company for 20 years, Weiruo communication Company adheres to the business philosophy of "quality for survival, innovation for development", and has established an efficient management, R & D, marketing and manufacturing team to provide first-class products and perfect one-stop solutions with professional technology and services.

Looking into the future, weiruo communication company actively responds to the rapid changes in the market, relies on the core values of "integrity, value and gratitude", and strives to become a first-class supplier of optical cable series products.
