1*2 4 8 16 32 64 SM 0.9mm SC APC Connector Fiber Optic PLC Splitter

Ask Lasest Price
Brand Name :	*WRC-12 4 8 16 32 64 SM 0.9mm plc fiber optic plc splitter with SC/APC connector**
Model Number :	*12 4 8 16 32 64 SM 0.9mm plc fiber optic plc splitter with SC/APC connector**
Certification :	ISO9001
Supply Ability :	1000 pcs per Day
Delivery Time :	5-20 days

Add to Cart

Product Details
Company Profile

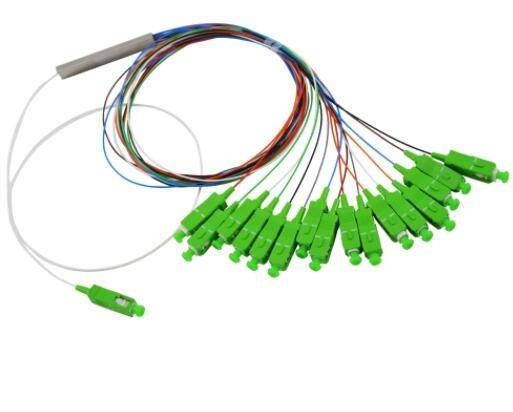

1*2 4 8 16 32 64 SM 0.9mm SC APC Connector Fiber Optic PLC Splitter

**1*2 4 8 16 32 64 SM 0.9mm plc fiber optic plc splitter with SC/APC connector**

Features of 1*2 4 8 16 32 64 SM 0.9mm plc fiber optic plc splitter with SC/APC connector

*Good uniformity and low insertion loss
*Low polarization dependent loss
*Excellent environmental stability
*Excellent mechanical construction
*Compact design, suitable for installation in optical equipment
*Wide operating temperature:-40~85 ℃
*High reliability and stability

Application of 1*2 4 8 16 32 64 SM 0.9mm plc fiber optic plc splitter with SC/APC connector

Optical Signal Distribution

Data Communications

Lan and CATV System

FTTX Deployment

Passive Optical Networks (PON)

Measuring System and Laser System

Product Paramenters of 1 Input 8 Output 1x8 Steel Tube Fiber Optic Splitter with SC APC Connector

Parameters	1×2	1×4	1×8	1×16	1×32	1×64	2×2	2×4	2×8	2×16	2×32
Operating Wavelength (nm)	1260~1650						1260~1650
Fiber Type	G657 or customized						G657 or customized
Insertion Loss (dB)	≤4.1	≤7.4	≤10.5	≤13.8	≤17.1	≤20.4	≤4.2	≤7.6	≤11	≤14.5	≤17.5
Loss Uniformity (dB)	≤0.8	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤0.8	≤1.5	≤1.5	≤2	≤2.5
Return Loss (dB)	≥50	≥50	≥50	≥50	≥50	≥50	≥50	≥50	≥50	≥50	≥50
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4	0.2	0.2	0.3	0.4	0.4
Directivity (dB)	≥55	≥55	≥55	≥55	≥55	≥55	≥55	≥55	≥55	≥55	≥55
Temperature Stability (-40~85 ℃)(dB)	0.5	0.5	0.5	0.5	0.5	0.5	0.3	0.5	0.5	0.5	0.5
Operating Temperature (℃)	-40~85						-40~85
Storage Temperature (℃)	-40~85						-40~85
Note:
1. The insertion loss is at least 0.2dB less without connector.
2. The insertion loss for 2×N PLC would increase less than 0.3dB.
3. Insertion loss varies with different connectors:UPC ≥50 dB, APC ≥55 dB
