SC APC 1 Input 8 Output 1x8 Steel Tube Fiber Optic PLC Splitter

    Buy cheap SC APC 1 Input 8 Output 1x8 Steel Tube Fiber Optic PLC Splitter from wholesalers

    Buy cheap SC APC 1 Input 8 Output 1x8 Steel Tube Fiber Optic PLC Splitter from wholesalers
    • Buy cheap SC APC 1 Input 8 Output 1x8 Steel Tube Fiber Optic PLC Splitter from wholesalers
    • Buy cheap SC APC 1 Input 8 Output 1x8 Steel Tube Fiber Optic PLC Splitter from wholesalers
    • Buy cheap SC APC 1 Input 8 Output 1x8 Steel Tube Fiber Optic PLC Splitter from wholesalers

    SC APC 1 Input 8 Output 1x8 Steel Tube Fiber Optic PLC Splitter

    Ask Lasest Price
    Brand Name : WRC-1 Input 8 Output 1x8 Steel Tube Fiber Optic Splitter with SC APC Connectors
    Model Number : 1 Input 8 Output 1x8 Steel Tube Fiber Optic Splitter with SC APC Connectors
    Certification : ISO9001
    Supply Ability : 1000 pcs per Day
    Delivery Time : 5-20 days
    • Product Details
    • Company Profile

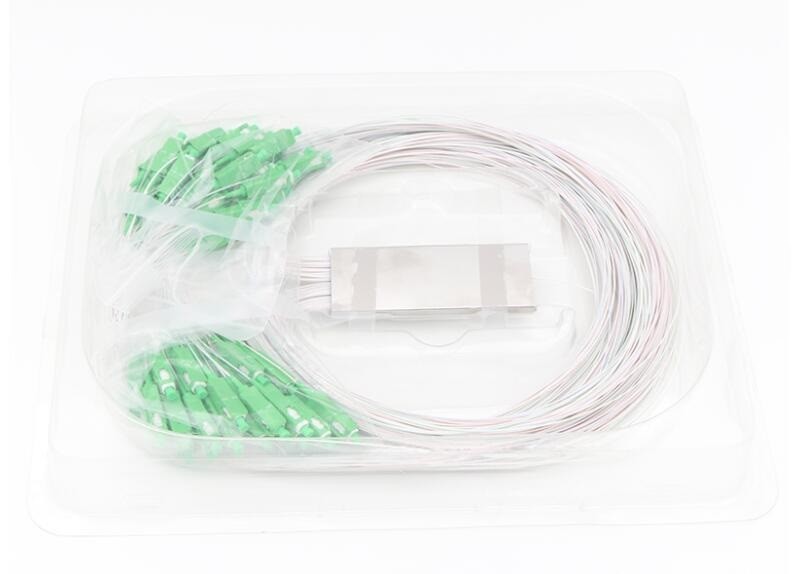

    SC APC 1 Input 8 Output 1x8 Steel Tube Fiber Optic PLC Splitter

    1 Input 8 Output 1x8 Steel Tube Fiber Optic Splitter with SC APC Connector

    Description of 1 Input 8 Output 1x8 Steel Tube Fiber Optic Splitter with SC APC Connector
    Low insertion loss and low PDL
    Uniform power splitting
    High reliability
    Excellent environmental stability
    Compact size and various package
    Application of 1 Input 8 Output 1x8 Steel Tube Fiber Optic Splitter with SC APC Connector
    FTTX systems(FTTP, FTTH, FTTN, FTTC...)
    Passive Optical Networks (PON)
    Digital, hybrid and AM-Video systems
    LAN,WAN and Metro Networks
    CATV systems
    Other applications in fiber optic systems
    Product Paramenters of 1 Input 8 Output 1x8 Steel Tube Fiber Optic Splitter with SC APC Connector
    Parameters
    1X4
    1X8
    1X16
    1X32
    Operating Wavelength (nm)
    1260~1650
    Fiber Type
    PM fiber 980,1310,1550 or customer specified
    Insertion Loss (dB)
    ≤7.5
    ≤10.5
    ≤13.7
    ≤16.9
    Loss Uniformity (dB)
    ≤0.6
    ≤0.8
    ≤1.2
    ≤1.5
    ER (dB)
    ≥20
    ≥20
    ≥18
    ≥18
    Return Loss (dB)
    ≥50
    Operating Temperature (℃)
    -5~+70
    Storage Temperature (℃)
    -40~+85
    Device Dimension (mm) (L×W×H)
    40×4×4
    40×4×4
    50×4×4
    50×7×4
    Module Dimension (mm) (L×W×H)
    100x80x10
    SC APC 1 Input 8 Output 1x8 Steel Tube Fiber Optic PLC Splitter
    SC APC 1 Input 8 Output 1x8 Steel Tube Fiber Optic PLC Splitter
    Quality SC APC 1 Input 8 Output 1x8 Steel Tube Fiber Optic PLC Splitter for sale
