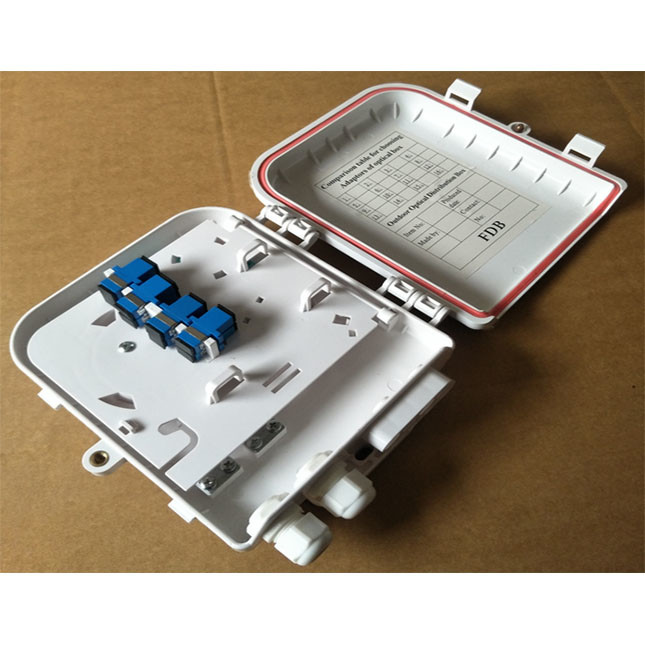

    8 12 16 24 Core FTTH BOX Fiber Access Terminal / Optical Fiber Cable Distribution Box

    8 12 16 24 core FTTH BOX Fiber Access Terminal/Optical fiber cable distribution box


    Description:

    FTTH fiber optical terminal box, outdoor fiber optic termination box is used in wiring connection between optical cable and optical communication equipment, through adapter in distribution box, optical fiber jumper leads optical signal, realize optical wiring function, and can meet the optical splitter placed to achieve spectral function.


    Features:

    ABS material used ensures the body strong and light.
    Waterproof design for outdoor use.
    Made of Grade A PC/ABS alloy material, working life more than 20 years.
    Drop resistance, ability to work under vertical pressure of 500N.
    Easy installations: Ready for wall mount installation kits provided.
    Adapter slots used, no screws and tools needed for installing adapters.
    Ready for splitters: designed space for adding splitters.
    Double-layer design for easier installation and maintenances:
    Lower layer for splitters and over length fiber storage.
    Upper layer for splicing, cross-connecting and fiber distribution.


    Application:
    · FTTH, FTTB, FTTC
    · Telecommunication Network
    · Local Area Network
    · CATV


    Specification:

    Product model:HLIN-OTB08BS
    Szie(mm)Long×Width×Height192*133*47Outer Packing(mm)Long×Width×Height480*470*520
    Material:High quality ABS/PCNet weight(Kg)0.3
    Suitable for optical cable diameter(mm)≤F12Outer packing weight(Kg)19.5
    Fiber optic cable inlet / outlet number:4/8Outer package quantity:60
    Maximum fusion core number:8(core)Outer package volume(M3 )0.117

    List of Package:


    Terminal box body1setInstruction1 copy
    Heat shrinkable tube L=402pcs3x100 tie2pcs
    M4×25 plastic expansion screws4sets
