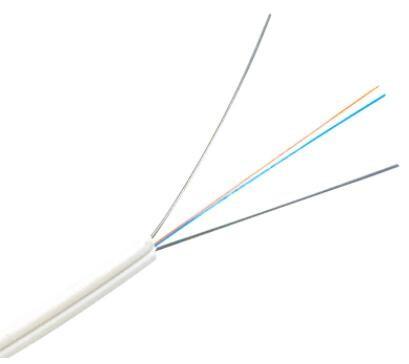

Single Mode FTTH Fiber Drop Cable 2 4 6 8 12 16 24 Core

    Buy cheap Single Mode FTTH Fiber Drop Cable 2 4 6 8 12 16 24 Core from wholesalers

    Buy cheap Single Mode FTTH Fiber Drop Cable 2 4 6 8 12 16 24 Core from wholesalers
    • Buy cheap Single Mode FTTH Fiber Drop Cable 2 4 6 8 12 16 24 Core from wholesalers
    • Buy cheap Single Mode FTTH Fiber Drop Cable 2 4 6 8 12 16 24 Core from wholesalers
    • Buy cheap Single Mode FTTH Fiber Drop Cable 2 4 6 8 12 16 24 Core from wholesalers
    • Buy cheap Single Mode FTTH Fiber Drop Cable 2 4 6 8 12 16 24 Core from wholesalers
    • Buy cheap Single Mode FTTH Fiber Drop Cable 2 4 6 8 12 16 24 Core from wholesalers

    Single Mode FTTH Fiber Drop Cable 2 4 6 8 12 16 24 Core

    Ask Lasest Price
    Brand Name : WRC
    Model Number : GYTS ,GYTA,GYFTA,GYFTY, GJYXCH, GYXTW,ADSS....
    Certification : ISO9001,SGS,ROHS,CIQ
    Price : USD0.50-USD18/Km
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 Kilometre / Day
    Delivery Time : 5~20 DAYS
    • Product Details
    • Company Profile

    Single Mode FTTH Fiber Drop Cable 2 4 6 8 12 16 24 Core

    Made in China FTTH fiber drop cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Fiber Optical Cable


    Feature

    1. Soft and bendable, easy to deploy and maintenance.

    2. Smaller diameter, Light weight, and high practicability.

    3. Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.

    4. Environmental protection- Low smoke, zero halogen and flame retardant sheath.

    Applications

    1. Used in access network or as access cable from outdoor to indoor in customer premises network;

    2. Used as access building cable in premises distribution system, especially used in indoor or outdoor


    Optical Characteristics

    G.652G.65550/125μm62.5/125μm
    Attenuation
    (+20°C)
    @850nm≤3.5 dB/km≤3.5 dB/km
    @1300nm≤1.5 dB/km≤1.5 dB/km
    @1310nm≤0.45 dB/km≤0.50 dB/km
    @1550nm≤0.30 dB/km≤0.50dB/km
    Bandwidth (Class A)@850nm≥500 MHz·km≥200 MHz·km
    @1300nm≥1000 MHz·km≥600 MHz·km
    Numerical Aperture0.200±0.015NA0.275±0.015NA
    Cable Cut-off Wavelength λcc≤1260nm≤1480nm

    Fiber Parameters

    No.ItemsUnitSpecification
    G.657A1
    1Mode Field Diameter1310nmμm9.0±0.4
    1550nmμm10.1±0.5
    2Cladding Diameterμm124.8±0.7
    3Cladding Non-Circularity%≤0.7
    4Core-Cladding Concentricity Errorμm≤0.5
    5Coating Diameterμm245±5
    6Coating Non-Circularity%≤6.0
    7Cladding-Coating Concentricity Errorμm≤12.0
    8Cable Cutoff Wavelengthnmλcc≤1260
    9Attenuation (max.)1310nmdB/km≤0.35
    1550nmdB/km≤0.21
    10Macro-Bending Loss1turn×10mm
    radius @1550nm
    dB≤0.75
    1turn×10mm
    radius@1625nm
    dB≤1.5



    More products
    FAQ
    Q1: Are you manufacturer?
    A: Yes, we are manufacturer since the year 2002.

    Q2: What's delivery time?
    A: Mass production time needs 1-2 week.

    Q3: What’s your payment terms?
    A:
    We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram
    Q4: What kind of cable do you produce?
    A: We’re specialized in manufacturing Coaxial Cable, such as RG Series and Trunk Cable, Optical Fiber Cable, such as ADSS and FTTH, and Lan Cable, such as CAT5E, CAT6 and CAT7.
    Q5: What’s your annual capability?
    A: We are specialized in manufacturing coaxial cable, optical fiber cable and Lan Cable, whose annual output reaches to 350,000 kilometers, 2 million kilometers’ core and 600,000 boxes separately.
    Q6: Do you have OEM and ODM?
    A: Yes, we have.
    Q9: May I get free sample?
    A: Normally, our samples for charger are free. If the sample quantity is large, it will be charged. However, the sample fee will be refunded when customer place bulk orders for that item.
    Q10: What's your trade term ?
    A: We can accept FOB, CIF, CFR, EXW, etc.

    Application
    1. FTTH Indoor and Outdoor
    2. Suitable for aerial and indoor laying method.
    3. Long distance and local area network communication.

    Quality Single Mode FTTH Fiber Drop Cable 2 4 6 8 12 16 24 Core for sale
