Ftth fiber optical cable Self-supporting Aerial Figure 8 indoor FTTH Fiber Optic Cable

Item	Technology parameter
Cable type	Drop Cable
Cable Count	1 2 4 6 8 12
Fiber color	Green, Yellow

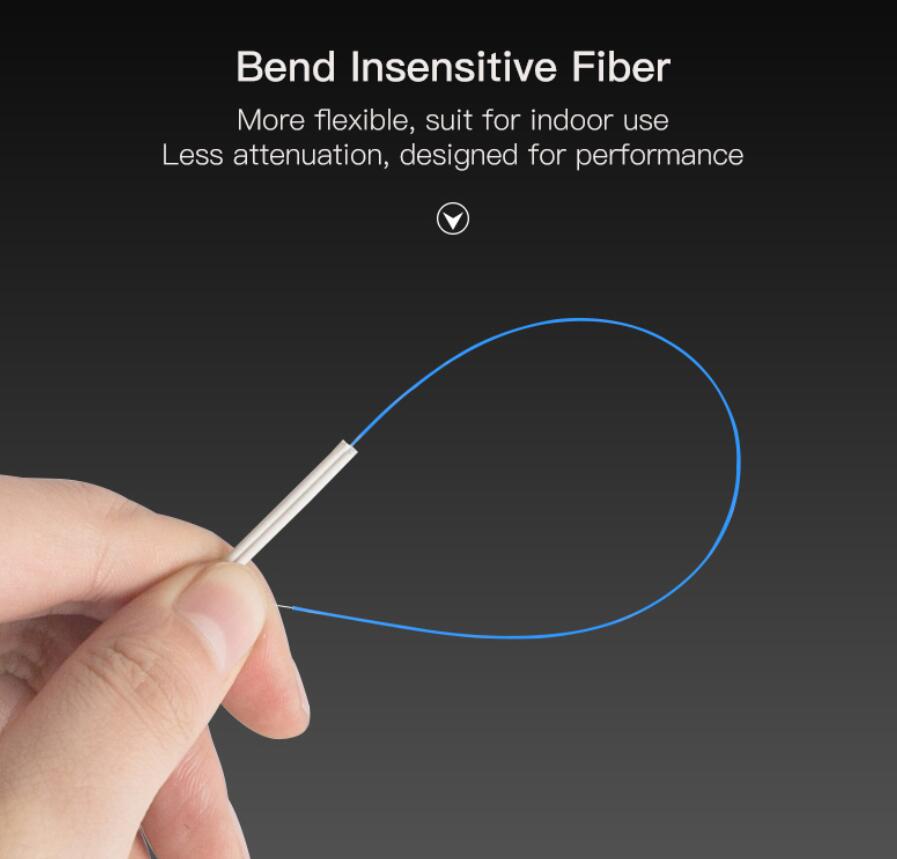

Fiber type	9/125 (G657A2)
Sheath color	Black and white
Sheath material	LSZH
Cable dimension (mm)	3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
Cable weight (Kg/km)	15
Min. bending radius (mm)	10 (Static) 25 (Static) 30 (Static) 60 (Static)
Attenuation (dB/km)	0.4 at 1310nm, 0.3 at 1550nm
Short term tensile ( N)	200; 600
Crush resistance (N/100mm)	1000; 2200
Operation temperature (℃)	-20~+70℃

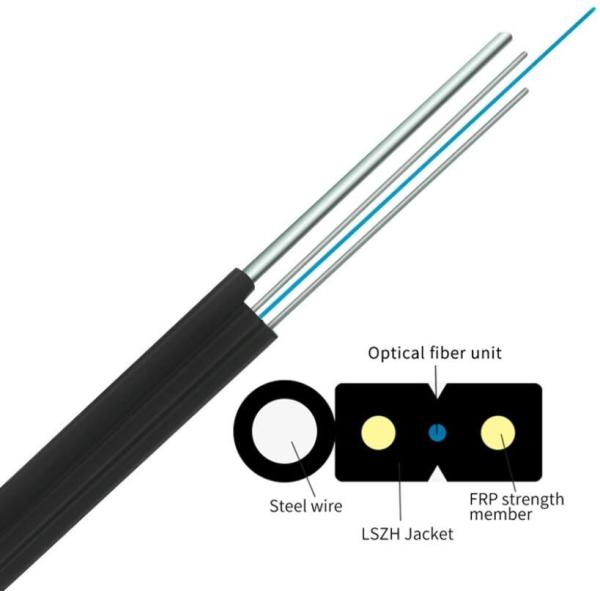

Technical data:

strength member	material	Galvanized steel wire/FRP/KFRP
	diameter	2*(0.5~0.8)mm
Self support Messenger wire	material	Galvanized steel wire
	diameter	1.0mm
Outer sheath	material	LSZH
	diameter	1.8±0.2mm
Cable size (Height * width)	2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness	Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness	0.5~0.7mm
Cable weight	1~2core	18.2KG
	4-6 core	18.5KG
	8~24core	54KG

FAQ

Q1: Are you manufacturer?
A: Yes, we are the manufacturer since the year 2002.

Q2: What's delivery time?
A: Mass production time needs 1-2 week.

Q3: What’s your payment terms?
A: T/T, L/C.

Q4: What kind of cable do you produce?
A: We’re specialized in manufacturing Coaxial Cable, such as RG Series and Trunk Cable, Optical Fiber Cable, such as ADSS and FTTH, and Lan Cable, such as CAT5E, CAT6 and CAT7.

Q5: What’s your annual capability?
A: We are specialized in manufacturing coaxial cable, optical fiber cable and Lan Cable, whose annual output reaches to 350,000 kilometers, 2 million kilometers’ core and 600,000 boxes separately.

Q6: Do you have OEM and ODM?
A: Yes, we could provide professional suggestions and best solutions to your requirements.

Q9: May I get free sample?
A: Normally, our samples for charger are free. If the sample quantity is large, it will be charged. However, the sample fee will be refunded when customer place bulk orders for that item.

Q10: What's your trade term ?
A: We can accept FOB, CIF, CFR, EXW, etc.

Wuhan Weiruo Communication technologies Co., Ltd is a leading independent manufacturer of optical fiber cables located in Wuhan City China. Founded in 2001, we manufacture indoor & outdoor optical cables and optical accessories products for the communications industry and are manufactured using internationally recognized materials, standards and test methods.

Since the establishment of the company for 20 years, Weiruo communication Company adheres to the business philosophy of "quality for survival, innovation for development", and has established an efficient management, R & D, marketing and manufacturing team to provide first-class products and perfect one-stop solutions with professional technology and services.

Looking into the future, weiruo communication company actively responds to the rapid changes in the market, relies on the core values of "integrity, value and gratitude", and strives to become a first-class supplier of optical cable series products.
