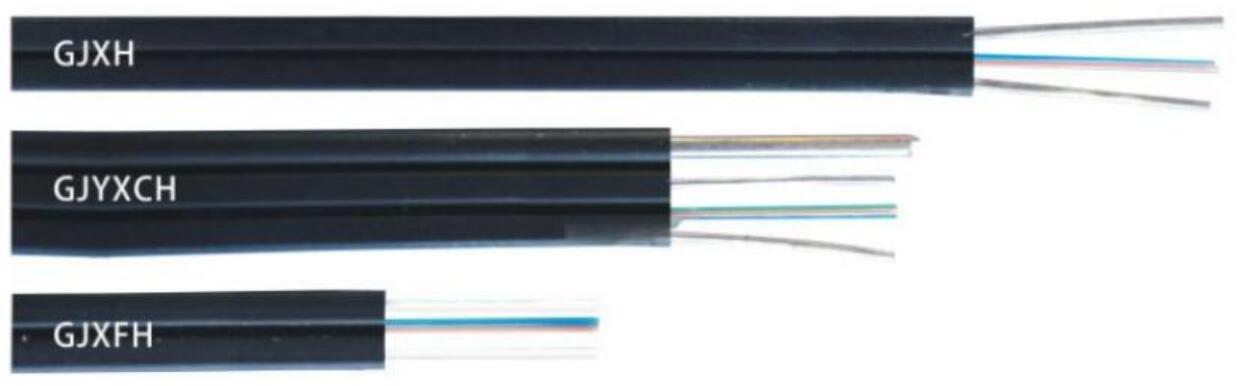

GJXH FTTH Bow-type Optical Fiber Cable, Indoor cables

Product Description:
Designed to improve the flexibility and Tensile Load to conveniently use the both of idoor & outdoor installation
The Aramid Yarn is inserted in the number of tight buffered fiber to enhance the Tensile Load
For the cable with over 12 cores, the excellent mechanical & environmental characteristics are provided with the multiple sub unit construction

Features:

Single-mode or Multimode optical fiber used
Tight buffered fiber used
Ease of identification using 12 colors
Ease of handling with flexibility & light weight
Coating materials :Flame retardant PVC,PU,LSZH & etc.(Certified with UL-OFNR,GOST)
Operating Temperature Range : -20~70°C

Technical data:

No. of cable				4	6	8	12
Fiber Model				OM2
Strength Member	Material			Aramid yarn
Tight lines	Material			PVC
	Diameter(±0.06)mm			0.9
	Thickness(±0.03)mm			0.32
Outer Sheath		Material		LSZH
		Thickness(±0.1)mm		0.7	0.8	0.8	0.8
Cable Diameter( ±0.2)mm				5.0	5.4	5.8	6.2
Cable Weight(±3)kg/km				21	24	29	36
Min. bending radius			Without Tension	10.0×Cable-φ
			Under Maximum Tension	20.0×Cable-φ
Temperature range (℃)			Installation	-20~+60
			Transport&Storage	-40~+70
			Operation	-40~+70

FTTH Bow-type Optical Fiber cable
