    GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Fiber Optic Cable Singlemode Multimode

    Ask Lasest Price
    Brand Name : Weiroct
    Model Number : GJFJV
    Certification : ISO-9001
    Price : USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 Kilometre / Month
    Delivery Time : 5~20 DAYS
    • Product Details
    • Company Profile

    GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Fiber Optic Cable Singlemode Multimode

    GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Singlemode Multimode Fiber Optic Cable


    Product Description:

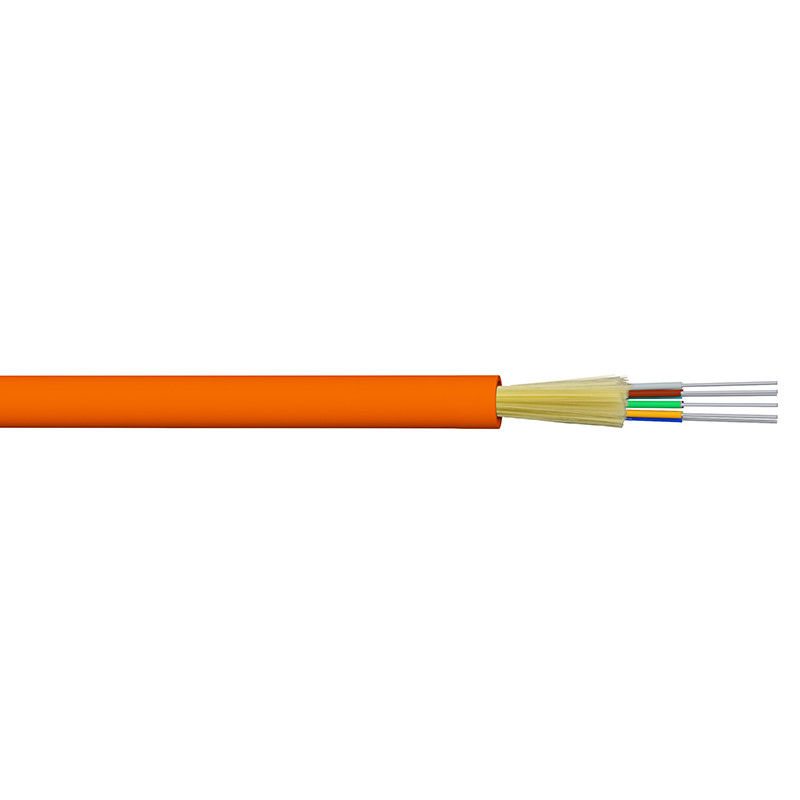

    GJFJV Simplex cable use single 900um or 600um tight buffer fiber as optical commucation medium , the tight buffer fiber wrapped
    with a layer of aramid yarn as strength member uinits, and the cable is completed with a PVC or LSZH (low
    smoke ,Zero halogen,Flame-retardant ) jacket.

    Products Features:

    Small diameter, light weight,flame retardant,excellent strippability

    Low-attenuation, High flexibility


    Cable diameter

    MPC-02MPC-04MPC-06MPC-08MPC-10MPC-12
    Cable Diameter(mm)4.1±0.254.8±0.255.1±0.256.2±0.256.5±0.256.8±0.25
    Cable Weight(kg/km)122024293235
    Tight Buffer Fiber Diameter900±50μm

    G652d optic fiber Mechanical Characteristics


    Tensile StrengthLong Term80N6050
    Short Term150N120100
    Crush ResistanceLong Term100N/100mm100N/100mm100N/100mm
    Short Term500N/100mm500N/100mm500N/100mm
    Bending RadiusDynamic20XD20XD20XD
    Static10XD10XD10XD


    GJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Fiber Optic Cable Singlemode MultimodeGJFJV Simplex Cable Tight Buffer PVC/LSZH Sheath Fiber Optic Cable Singlemode Multimode
