Aramid Yarn Filler 3.0mm Indoor Fiber Optic Cable 80 Deg Aerial Multicore

Ask Lasest Price
Brand Name :	Weiroct
Model Number :	GJBFJH
Certification :	ISO-9001
Price :	USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	2000 Kilometre / Month
Delivery Time :	5~20 DAYS

Add to Cart

Product Details
Company Profile

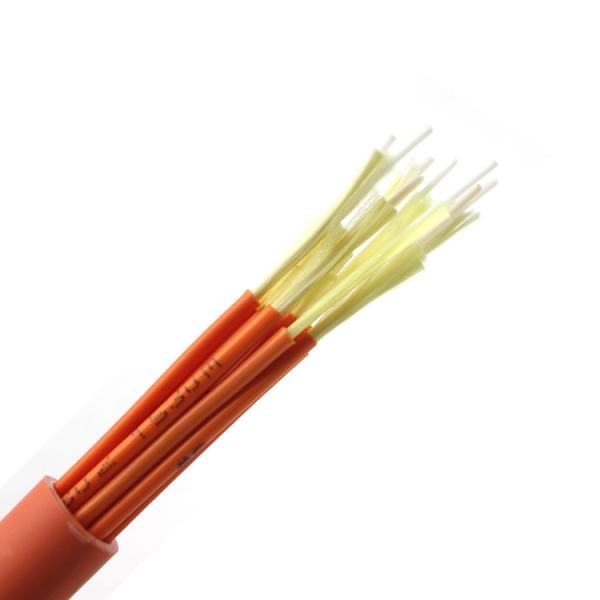

Aramid Yarn Filler 3.0mm Indoor Fiber Optic Cable 80 Deg Aerial Multicore

24 Core Fiber Optic Cable GJBFJH Single Mode SM G657A1 PVC LSZH Aerial Indoor Breakout Cable

Product Description:

The type of simplex fiber optic cables are stranded around a central strength member, then Longitudinal wrapping tape, and the cable is completed with an outer sheath.
The flame-retardant property of this fiber optic cable meets the relevant standard.
The fiber optic cable supports high-capacity data transmission. For this type fiber optic cable, its outer sheath can be made of PVC, LSZH, or other agreed materials.

Features:

·Good mechanical and environmental performance.
·Flame-retardant meets relevant standards.
·Support high-capacity data transmission.
·Suitable for indoor horizontal cabling.
·Suitable for pigtail fiber, jumper wire, and optical connection in optical communication machine room, optical distribution frame, optical device or equipment, etc.
·Jacket can be made of flame retardant PVC,LSZH flame retardant polyolefin or other agreed material.
·Tight buffer color can be customized

Optical Characteristics
Item	62.5μm(OM1) 850nm/1300NM	50μm(OM2) 850nm/1300NM	50μm(OM3) 850nm/1300NM	SM 1310nm/1550nm
Attenuation of maximum value(dB/km)	3.5/1.5	3.5/1.5	3.5/1.5	0.4/0.3
Attenuation of typical value(dB/km)	3.5/1.5	3.0/1.0	3.0/1.0	0.38/0.25

Main Performance
Items	Test Standard	Specified Value	Requirements
Tension	IEC 60794-1-2-E1	See Technical Data	Additional attenuation: ≤0.1dB after test
Crush	IEC 60794-1-2-E3	See Technical Data	Additional attenuation: ≤0.1dB after test
Impact	IEC 60794-1-2-E4	R=300mm, 10Nm, one in 3 different places	Additional attenuation: ≤0.1dB after test
Repeated Bending	IEC 60794-1-2-E6	R=20*D	Additional attenuation: ≤0.1dB after test
Water Penetration	IEC 60794-1-2-F5	Sample length=3m, Water height=1m, 24 hours	No water leakage
Temperature Cycling	IEC 60794-1-2-F1	‘-40℃- +70℃	Attenuation change: ≤0.05dB/kM after test

Technical Data
Fiber count	Specifications(mm)	Weight(kg/km)	Tensile strength (N)		Crush resistance short/long term (N/100mm)		Bending radius(km)
4	7.5	52	210	450	300	1000	10D	20D
24	14.8	185	1200	2400	300	1000	10D	20D

Certificate

Fiber Count	Outside OD(mm)	Tight Buffer OD(mm)	Weightkg/km	Tensile Strength(N)		Crush Resistance(N/100mm)		Bending Radius(mm)
2	3	0.9	15	600	200	1000	200	20D	10D
4	5	0.9	22	600	200	1000	200	20D	10D
6	5	0.9	23	600	200	1000	200	20D	10D
8	5.5	0.9	28	600	200	1000	200	20D	10D
12	6	0.9	38	600	200	1000	200	20D	10D
16	7.2	0.9	42	600	200	1000	200	20D	10D
24	8.3	0.9	58	600	200	1000	200	20D	10D
48	10	0.9	96	600	200	1000	200	20D	10D
