GYTC8S Outdoor Aerial Multi Core Single Mode G652d Figure 8 Fiber
Optic Cable 10 Core
Description of GYTC8S Outdoor Aerial Multi Core Single Mode G652d
Figure 8 Fiber Optic Cable 10 Core
The GYXTC8S cable is constructed by inserting a 250μm fiber into a
loose tube made of a high-modulus material filled with a
water-repellent compound. The loose tube is coated with a
double-sided plastic coated steel strip (PSP) longitudinally, and a
water-blocking material is added between the steel strip and the
loose tube to ensure compact and longitudinal water blocking of the
cable, and the steel strand is integrated into an 8-shaped type.
Inside the polyethylene sheath.
Features of GYTC8S Outdoor Aerial Multi Core Single Mode G652d
Figure 8 Fiber Optic Cable 10 Core
· The steel wire strand has a very high tensile strength, which is
convenient for self-supporting overhead laying and reduces
installation costs.
· Has good mechanical and temperature properties.
· The loose tube material itself has good hydrolysis resistance and
high strength.
· The tube is filled with a special grease to protect the fiber.
· Double coated steel strip (PSP) improves the moisture resistance
of the cable.
· Small diameter, light weight and easy to lay.
· Long delivery length and low price.
Parameter Data of GYTC8S Outdoor Aerial Multi Core Single Mode
G652d Figure 8 Fiber Optic Cable 10 Core
| Model | Fiber count | Tube count | Filling rope count | Weight (kg/km) | Tension (N) | Crush (N/100mm) | Bending Radius Static / dynamic (mm) |
| GYTC8A-2~6Xn | 2~6 | 1 | 4 | 158 | According to the diameter of suspension wire | 300/1000 | 10D/20D |
| GYTC8A-8~12Xn | 8~12 | 2 | 3 | 158 |
| GYTC8A-14~18Xn | 14~18 | 3 | 2 | 158 |
| GYTC8A-20~24Xn | 20~24 | 4 | 1 | 158 |
| GYTC8A-26~30Xn | 26~30 | 5 | 0 | 158 |
Technical Parameters:
Cable count |
Out sheath
diameter |
Weight | Minimum
allowable
Tensile
Strength(N) |
Minimum allowable
Crush Load
(N/100mm) | Minimum
Bending
Radius
(MM) |
Storage
temperature |
| (MM) | (kg) | Short
term | Long
term | Short
term | Long
term | Short
term | Long
term |
(℃) |
| 6 | 3.0 x 9.8 | 54 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40 ~ +70 |
| 12 | 3.0 x 9.8 | 54 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40 ~ +70 |
| 24 | 7.0x14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 36 | 7.0x14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 42 | 7.0x14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 48 | 7.0x15.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 72 | 7.0x15.5 | 245 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 144 | 7.0x15.5 | 285 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
G.652D Single Mode Optical Fiber (B1.3) |
Item | Standard | Unit |
Attenuation | 1310nm | ≤0.35 | dB/km |
1383nm | ≤0.33 | dB/km |
1550nm | ≤0.21 | dB/km |
1625nm | ≤0.24 | dB/km |
Dispersion | 1288nm～1339nm | |D|≤3.4 | ps/(nm·km) |
1271nm～1360nm | |D|≤5.3 | ps/(nm·km) |
1550nm | ≤17.8 | ps/(nm·km) |
Zero-dispersion wavelength | 1300～1322 | (nm) |
Zero-dispersion slope | ≤0.091 | ps/(nm2•km) |
PMD | PMD single fiber | ≤0.15 | ps/√km |
PMD Q links | ≤0.08 | ps/√km |
MDF | 1310nm | 9.2±0.4 | um |
Cladding diameter | 125±1.0 | μm |
Cladding non-circularity | ≤0.8 | % |
Core-cladding concentricity error | ≤0.6 | μm |
Coating diameter | 245±10 | μm |
Cladding/coating concentricity error | ≤10.0 | μm |
Cut-off wavelength | 1.18～1.33 | μm |
Macrobend attenuation (ф 50mm, 100 cycles) | 1550nm | ≤0.05 | dB |
1625nm | ≤0.05 | dB |
Bending radius | ≥5 | m |
Dynamic fatigue parameters | ≥20 | nd |
Additional Attenuation @1310nm & @1550nm | Temperature cycling test:
(-60℃～85℃, 3 cycles) | ≤0.03 | dB/km |
Water soak test:
(23℃ for 30 days) | ≤0.03 | dB/km |
Damp heat test:
(85℃, 85%RH for 30 days) | ≤0.03 | dB/km |
Thermal aging test (85℃ for 30 days) | ≤0.03 | dB/km |
Warm water soak test: (60℃ for 15 days) | ≤0.03 | dB/km |
FAQ
Payment
For large orders, T/T , L/C, and E-credit lines are all offered.
For small orders, credit-cards are accepted.
Shipping & Delivery
We will send the products within 10-30 days.
We ship small batched by air, or large orders by container.
Return and WarrantyAll products have been tested before ship out
All products have 2 years warranty. If there is no man-made problem
,we will replace or repair for you freely.
We own the best after-sale service. If any problems happen ,our
team will do our best to solve for customers.

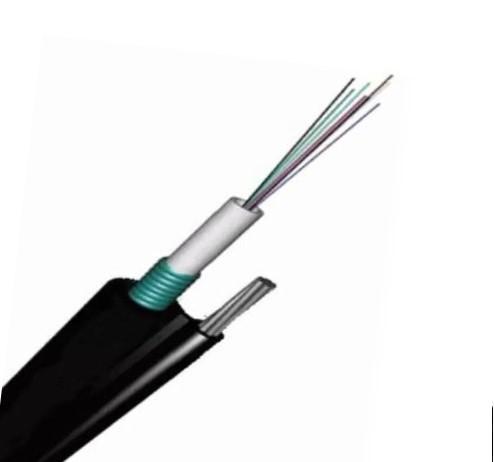

Drawings of GYTC8S Outdoor Aerial Multi Core Single Mode G652d
Figure 8 Fiber Optic Cable 10 Core
