    Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member

    Ask Lasest Price
    Brand Name : Weiroct
    Model Number : FTTx
    Certification : ISO-9001
    Price : USD
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 1000 Kilometre / Month
    Delivery Time : 5-7 Days
    • Product Details
    • Company Profile

    Outdoor 24 48 Core GYFTY Fiber Optic Cable With FRP Strength Member

    GYFTY Outdoor Aerial 24 48 Core Fiber Optic Cable with FRP Strength Member Fiber Optic Cable

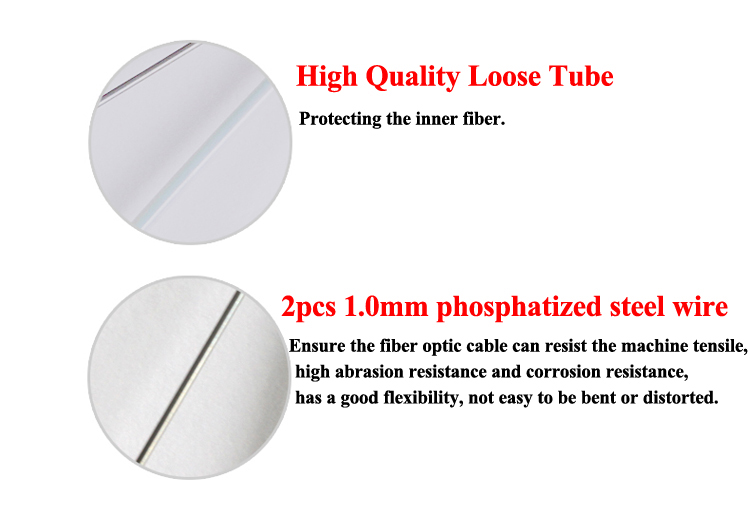

    The fibers, 250μ m, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.


    Applicable fields:
    Long-distance telecom, LAN in high-voltage area or access to telecom network
    Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
    Recommended layings methods
    High-voltage area, Aerial

    Advantages:
    1. Low dispersion and attenuation.
    2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
    environmental characteristics.
    3. Anti-electromagnetism ability.
    4. Small cable diameter, light cable weight, easily to install.


    Fiber count
    2-288 cores
    Out sheath
    Black Polyethylene (PE)
    Support
    FTTH FTTB FTTX Network
    Application
    Outdoor Aerial
    Installation tensile
    25KN
    Certification
    ISO9001/CE/RoHS
    Standard
    IEC 6079-1;IEEE 1222-2004
    Color
    Deafult / OEM

    Fiber Parameter

    No.ItemsUnitSpecification
    G.652D
    1Mode Field Diameter1310nmμm9.2±0.4
    1550nmμm10.4±0.5
    2Cladding Diameterμm124.8±0.7
    3Cladding Non-Circularity%≤0.7
    4Core-Cladding Concentricity Errorμm≤0.5
    5Coating Diameterμm245±5
    6Coating Non-Circularity%≤6.0
    7Cladding-Coating Concentricity Errorμm≤12.0
    8Cable Cutoff Wavelengthnmλcc≤1260
    9Attenuation (max.)1310nmdB/km≤0.36
    1550nmdB/km≤0.24

    Cable Parameters

    ItemsSpecifications
    Fiber Count2~24
    Colored Coating FiberDimension250µm±15µm
    ColorBlue, Orange, Green, Brown, Gray, White
    Loose TubeDimension2.10mm±0.05mm
    MaterialPBT
    ColorNatural
    Strength MemberDiameter1.0mm
    MaterialSteel
    Outer JacketDimension8.0mm±0.1mm
    MaterialPE
    ColorBlack

    Mechanical and Environmental Characteristics

    ItemsUniteSpecifications
    Tensio (Long Term)N600
    Tension (Short Term)N1500
    Crush (Long Term)N/10cm300
    Crush (Short Term)N/10cm1000
    Min. Bend Radius (Dynamic)mm20D
    Min. Bend Radius (Static)mm10D
    Installation Temperature-20~+60
    Operating Temperature-40~+70
    Storage Temperature-40~+70


    Application



    Packing
