Outdoor Single Mode Fiber Optic Cable 24 Core ADSS OFC Fiber Optic
Cable
Description

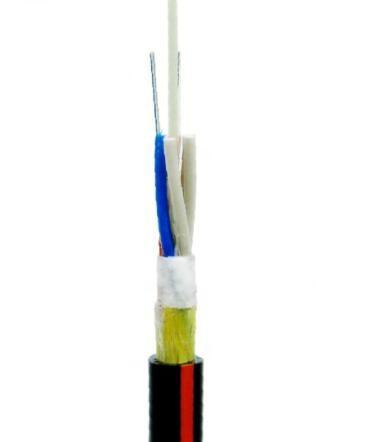

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned
into a loose tube made of high modulus plastics.
The tubes are filled with a water-resistant filling compound. The
tubes (and fillers) are stranded around a FRP
(Fiber Reinforced Plastic) as a non-metallic central strength
member into a compact and circular cable core.
After the cable core is filled with filling compound. it is covered
with thin PE (polyethylene) inner sheath.
After stranded layer of aramid yarns are applied over the inner
sheath as strength member,
the cable is completed with PE or AT (anti-tracking) outer sheath.
Applications
Remote base station communication such as RRU or BBU.
Smart substation and CATV Outdoor application.
Emergency access to optical fiber communication.
Used in FTTX, from residence to data center and cabling level and
vertical, also used in FTTH cable.
Features
Good mechanical and temperature characteristics.
Good lateral compression and flexibility.
Small diameter, light weight, easy to connect, and support large
capacity data transmission.
Mini armored layer used to decrease the outer diameter and cable
weight, also convenient for laying and splice.
Outer jacket material has the advantages of water proof, flame
retardant, environmental protection.
Cable parameters
No. of cable | 4 | 8 | 12 | 24 | 48 | 72 | 144 |
Fiber Model | G.652D |
Design(Strength Member + Tube &Filler) | 1+5 | 1+6 | 1+12 |
Central Strength
Member | Material | FRP |
Diameter(±0.05)mm | 1.5 | 2.0 |
Loose Tube | Material | PBT |
| Diameter(±0.06)mm | 1.72 | 2.0 |
Thickness(±0.03)mm | 0.30 | 0.32 |
The Max. Core NO./Tube | 4 | 6 | 12 |
Filler Rope
| Material | LDPE |
Color | White |
Diameter(±0.06)mm | 1.7 | 2.0 |
Water Blocking layer(Material) | Flooding Compound |
Outer
Sheath | Material | MDPE |
Thickness(±0.2)mm | 1.8 |
Cable Diameter | 8.3 | 8.9 | 9.4 | 13.2 |
Cable Weight | 55 | 65 | 75 | 160 |
Min. bending radius
| Without Tension | 10.0×Cable -φ |
Under Maximum Tension | 20.0×Cable -φ |
Temperature range
(℃) | Installation | -20~+60 |
Transport & Storage | -40~+70 |
Operation | -40~+70 |
