G652D Aerial Duct GYFTY 12 24 48 72 96 Core single mode Fiber
Optical Cable

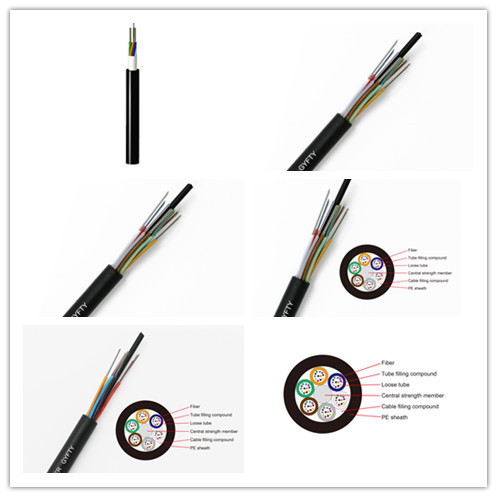

Product Description
The fibers, 250µm, are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound. A Fiber Reinforced Plastic (FRP) locates in the
center of core as a non-metallic strength member. The tubes (and
fillers) are stranded around the strength member into a compact and
circular core. Then the cable core is covered with a thin
polyethylene (PE)sheath, which is filled with jelly to protect it
from water ingress. A layer of water-blocking material is applied
around the cable core to prevent water ingress the cable is
completed with a PE outer sheath.
Features:
Good mechanical and environmental characteristics
Flame retardant characteristics meet the requirements of relevant
standards.
The mechanical characteristics meet the requirements of relevant
stands
Soft, flexible easy to splice and with big capacity data
transmission
Applications:
Backbones and Access.
Installed in duct/Aerial.
Optical Characteristics
|
|
G.652D |
50/125um |
625/125μm |
Attenuation |
@850nm |
|
≤3.0dB/km |
≤3.0dB/km |
(+20°C) |
@1300nm |
|
≤1.0dB/km |
≤1.0dB/km |
|
@1310nm |
≤0.36dB/km |
|
|
|
@1550nm |
≤0.22dB/km |
|
|
Bandwidth(ClassA) |
@850nm |
|
2500MHzkm |
2200MHz:km |
|
@1300nm |
|
21000MHz-km |
2600MHzkm |
NumericalAperture |
|
|
0.200+0.015NA |
0.275+0.015NA |
CableCut- offWavelengthλcc |
|
≤1260nm |
|
|
Optical Characteristics
| | G.652 | G.655 | 50/125μm | 62.5/125μm |
Attenuation
(+20°C) | @850nm | | | ≤3.5 dB/km | ≤3.5 dB/km |
| @1300nm | | | ≤1.5 dB/km | ≤1.5 dB/km |
| @1310nm | ≤0.45 dB/km | ≤0.50 dB/km | | |
| @1550nm | ≤0.30 dB/km | ≤0.50dB/km | | |
| Bandwidth (Class A) | @850nm | | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |
|
Fiber Parameters
| No. | Items | Unit | Specification |
| G.657A1 |
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 |
| 2 | Cladding Diameter | μm | 124.8±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 |
| 10 | Macro-Bending Loss | 1turn×10mm
radius @1550nm | dB | ≤0.75 |
1turn×10mm
radius@1625nm | dB | ≤1.5 |
Package
FAQ
1.Are you the real manufacturer?
We are the real manufacturer with 19 year’s exprerience.
2.What’s the MOQ?
The MOQ is 1km.
3.What’s delivery time?
The general delivery time is 5-9 days after order confirmed. It
depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways
not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc.
