GYXTW 4A1B Armored 4 Core Outdoor Multimode Optical Cable

    Buy cheap GYXTW 4A1B Armored 4 Core Outdoor Multimode Optical Cable from wholesalers

    Buy cheap GYXTW 4A1B Armored 4 Core Outdoor Multimode Optical Cable from wholesalers
    • Buy cheap GYXTW 4A1B Armored 4 Core Outdoor Multimode Optical Cable from wholesalers
    • Buy cheap GYXTW 4A1B Armored 4 Core Outdoor Multimode Optical Cable from wholesalers
    • Buy cheap GYXTW 4A1B Armored 4 Core Outdoor Multimode Optical Cable from wholesalers
    • Buy cheap GYXTW 4A1B Armored 4 Core Outdoor Multimode Optical Cable from wholesalers

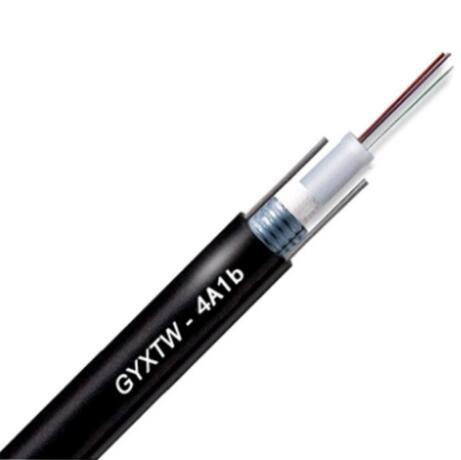

    GYXTW 4A1B Armored 4 Core Outdoor Multimode Optical Cable

    Ask Lasest Price
    Brand Name : Wrc-GYXTW 4A1B 4 Core Outdoor Multimode Optical Cable 4A1b Outdoor Armored Optical Fiber
    Model Number : GYXTW 4A1B 4 Core Outdoor Multimode Optical Cable 4A1b Outdoor Armored Optical Fiber
    Certification : ISO9001,SGS
    Price : USD60-USD350/Km
    Payment Terms : Western Union, MoneyGram, D/P, T/T, L/C
    Supply Ability : 500Km per day
    Delivery Time : 5-21 days
    • Product Details
    • Company Profile

    GYXTW 4A1B Armored 4 Core Outdoor Multimode Optical Cable

    Description: GYXTW 4A1B 4 Core Outdoor Multimode Optical Cable 4A1b Outdoor Armored Optical Fiber

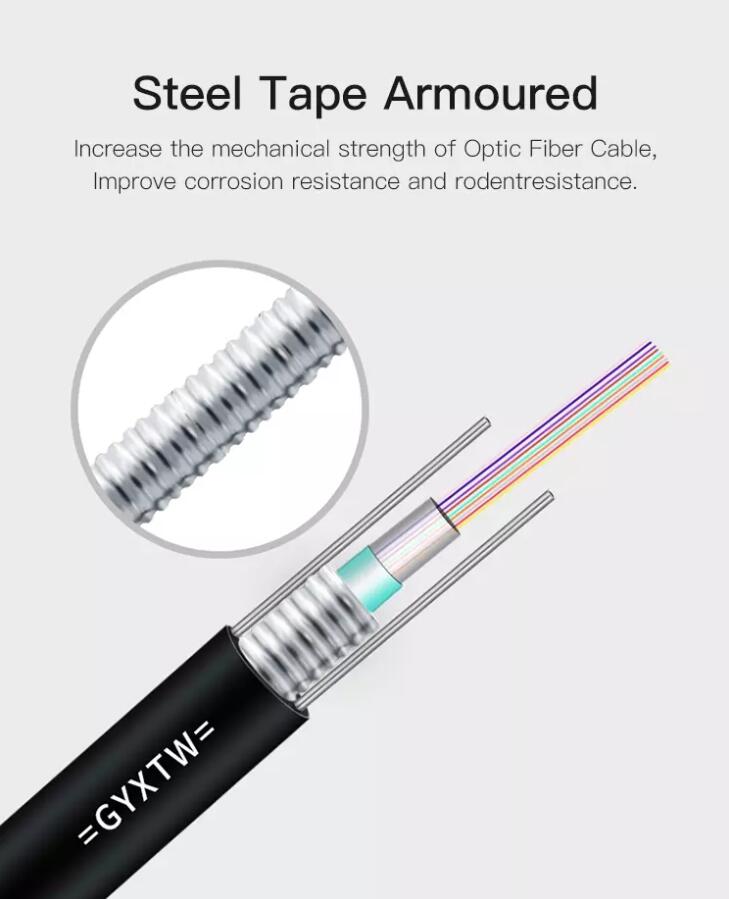

    "GYXTW 4A1B 4 Core Outdoor Multimode Optical Cable 4A1b Outdoor Armored Optical Fiber"is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the cable. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.


    Characteristics of GYXTW 4A1B 4 Core Outdoor Multimode Optical Cable 4A1b Outdoor Armored Optical Fiber
    1. Good mechanical and temperature performance

    2.Special tube filling compound ensure a critical protection of fiber
    3. High strength loose tube that is hydrolysis resistant
    4. The following measures are taken to ensure the cable watertight:
    5. Loose tube filling compound, 100% cable core filling
    6. PSP/PAP enhancing moisture-proof

    7. Crush resistance and flexibility


    Structure and Technical specifications of GYXTW 4A1B 4 Core Outdoor Multimode Optical Cable 4A1b Outdoor Armored Optical Fiber
    Cable model
    Number
    of fibers
    Cable
    diameter mm
    Weight
    kg/km
    Allowable stretching force Long/
    short term N
    Allowable crushing force Long/short term
    N/100mm
    Bending radius
    Static/dynamic
    mm
    GYXTW-2~12
    2~12
    10.6
    124
    1000/3000
    1000/3000
    10D/20D
    GYXTW-14~24
    14~24
    12.5
    149
    1000/3000
    1000/3000
    10D/20D
    GYXTW-26~36
    26~36
    14.0
    190
    1000/3000
    1000/3000
    10D/20D
    GYXTW-38~48
    38~48
    15.0
    216
    1000/3000
    1000/3000
    10D/20D
    We produce cables according to the standard as below:
    Mechanical Performance
    Max Tension PerformanceIEC 60794–1-2-E
    Max. Operation TensionIEC 60794–1-2-E1
    Crush TestIEC 6079 –1-2-E3
    Impact TestIEC 60794–1-2-E4
    Repeated BendingIEC 60794–1-2-E6
    Torsion TestIEC 60794–1-2-E7
    Cable bendIEC 60794–1-2-E11A
    Attenuation CoefficientITU-T G.652
    Structural TestIEC-60793-1-20
    Environmental Performance
    Temperature CyclingIEC 60794–1-2-F1
    Water PenetrationIEC 60794–1–2-F5B
    Filing Compound FlowIEC 60794-1-E14
    Packing details:
    Cable TypeDrum Length(KM)Drum/Carton size (cm)Gross weight/CTN (kgs)KMs/20ft
    GYXTW 2~12F270*70*60160144
    Our advantage:
    1.Advanced production and testing equipment
    2.Professional manufacturer, 100% tested.
    3.Full compliance with ISO 9001:2008 quality management system
    4.Our company has experienced professional team
    5.Provide reliable solutions and satisfactory services
    6.Warmly services with careful attentions.
    7.Can provide your specific inquiry within 24 hours.Advanced production and testing equipment
    FAQ
    1. What are the payment terms that you support?
    Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
    2. What about the lead time?
    Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
    3. How about the shipping?
    When the package is small, we normally choose FedEx, DHL, TNT, and UPS, and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
    4. How can I place an order?
    (1) Negotiation is agreed upon for the product price and specifications.
    (2) The Proforma invoice will be sent for confirmation.
    (3) After the agreement on the proforma invoice, the customer makes the deposit.
    (4) Manufacturing will be started as soon as the payment is confirmed by our bank.
    (5) Ship out the goods within the agreed delivery deadline.
    5. Can you do OEM for us?
    Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
    6. How about the Warranty?
    There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
    7. why should you buy from us not from other suppliers?
    A .Various products can meet any needs and requirements.
    B.One-stop-shopping with better price/more choice/reliable quality/easy payment.
    C.Promote and improve the performance of all staff, Quality employees creates quality products.

    8. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW;
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T;
    Language Spoken:English,Chinese


    Drawings of GYXTW 4A1B 4 Core Outdoor Multimode Optical Cable 4A1b Outdoor Armored Optical Fiber




    Package of GYXTW 4A1B 4 Core Outdoor Multimode Optical Cable 4A1b Outdoor Armored Optical Fiber
